Viewsonic VB-WMK-004 držák na displej 75" až 110"

Popis produktu:

VB-WMK-004

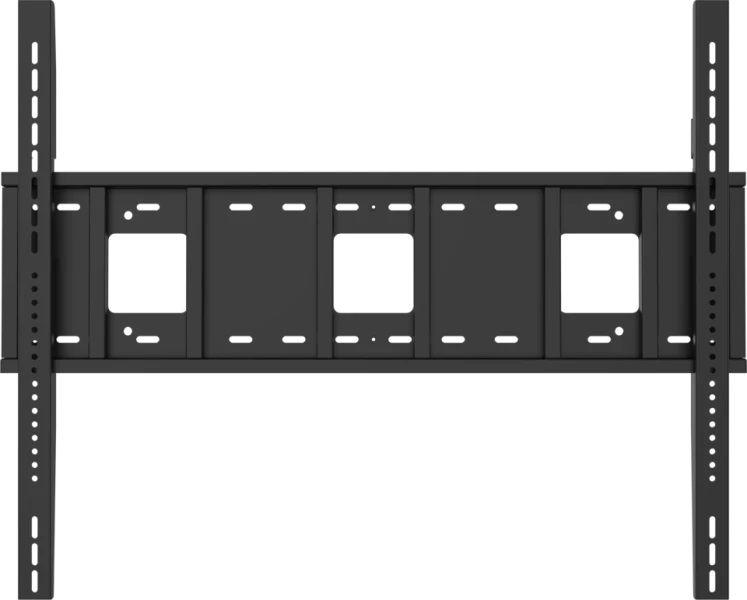

Fixed Wall Mount for ViewBoard and Presentation Display
Secure locking screw
Up to 360kg load capacity and 110" display
VSEA standard support up to 1000x800mm
Durable coated finish

The VB-WMK-004 is designed to mount 75" to 110" ViewBoard and Presentation Display

SPECIFIKACE

Mounting Pattern Max. Mount
up to 1000x800mm
Screw Type
M8
Materiál
Iron
Dimension (WxHxD)
Fyzicky (VxŠxH): 1110 x 885.8 x 43.5 mm / 43.7 x 34.87 x 1.71 in
Balení (ŠxVxH): 1195 x 340 x 150 mm / 47.05 x 13.39 x 5.91 in
Weight (Net)
Čistá hmotnost: 13.5 kg / 29.76 lb(Support Max. weight: 360 kg / 793.66 lb)
Hrubý: 14.7 kg / 32.41 lb
Support Flat Panel Size
75" - 110"
Min. Distance To The Wall
43.5mm
Included Accessories
110” Vertical beam x 2
110” Cross beam x 1
M8×20mm P head flat tail screw x 6
M5*130mm crossed screw x 2
M4×10mm round head flat tail screw x 2
80mm Expansion screw x 8
Installation Guide x 1
PE Bags x 1

Specifikace:
