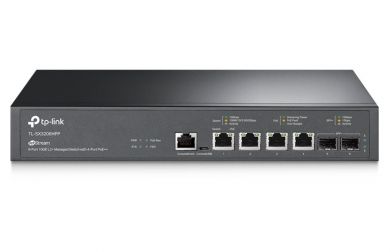

TP-Link OMADA TL-SX3206HPP JetStream switch (4x10GbE, 2xSFP+, 4xPoE++, 200W, 2xconsole)

Popis produktu:

TP-Link OMADA switch SX3206HPP
Omada 6portový managed switch 10GE L2+ se 4 porty PoE++

4× 10G PoE++ porty s až 60 W PoE výstupem na port
2× 10G SFP+ sloty
200 W celkový PoE rozpočet
Centralizovaná správa přes cloud pomocí webu nebo aplikace Omada
Samostatná správa přes web, CLI, SNMP a RMON
Statické směrování pomáhá směrovat interní provoz pro vyšší efektivitu
VLAN, ACL, QoS, IGMP Snooping, OAM a DDM
ERPS podporuje rychlou ochranu a obnovu v kruhové topologii
Desktopové / rackové montování

Více informací o TP-Link PoE technologii >
Zjistit více o Omada Cloud SDN>?
Více informací o TP-Link 10G Multi-Gig technologii >

Stránky produktu: https://www.tp-link.com/cz/business-networking/managed-switch/sx3206hpp/
Technické specifikace



HARDWARE FEATURES
Interface • 4× 100/1000/2500/5000/10000 Mbps RJ45 Ports

• 2× 10G SFP+ Slots

• 1× RJ45 Console Port

• 1× Micro-USB Console Port
Fan Quantity 2
Physical Security Lock ?
Power Supply 100-240 V AC~50/60 Hz
PoE Ports (RJ45) • Standard: 802.3af/at/bt (type 3) compliant**

• PoE+ Ports: 4 Ports, up to 60 W per port

• Power Budget: 200 W*
Dimensions ( W x D x H ) 11.6×7.1×1.7 in (294×180×44 mm)
Mounting • Rack Mountable

• Desktop
Max Power Consumption 244.90 W (110V/60Hz) (with 200 W PD connected)
Max Heat Dissipation 835.67 BTU/h (110 V/60 Hz) (with 200 W PD connected)
PERFORMANCE
Switching Capacity 120 Gbps
Packet Forwarding Rate 89.28 Mpps
MAC Address Table 32 K
Packet Buffer Memory 16 Mbit
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service • 8 priority queues

• 802.1p CoS/DSCP priority

• Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR

• Bandwidth Control: Port/Flow-based Rating Limiting

• Smoother Performance

• Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2 and L2+ Features • 128 IP Interfaces: Support IPv4/IPv6 Interface

• Static Routing: 48 IPv4/IPv6 Static Routes

• Static ARP: 128 static entries

• 512 ARP Entries

• Proxy ARP

• Gratuitous ARP

• DHCP Server

• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay

• DHCP L2 Relay

• Link Aggregation

• Spanning Tree Protocol

• Loopback Detection

• 802.3x Flow Control

• Mirroring
L2 Multicast • Supports 1000 (IPv4, IPv6) IGMP groups

• IGMP Snooping

• IGMP Authentication

• Multicast VLAN Registration (MVR)

• MLD Snooping

• Multicast Filtering: 256 profiles and 16 entries per profile
Advanced Features • Automatic Device Discovery†

• Batch Configuration†

• Batch Firmware Upgrading†

• Intelligent Network Monitoring†

• Abnormal Event Warnings†

• Unified Configuration†

• Reboot Schedule†

ISP Features***:

• L2PT (Layer 2 Protocol Tunneling)

• Device Link Detect Protocol (DLDP)

• PPPoE ID Insertion

• ERPS

• 802.3ah Ethernet Link OAM

• sFlow

• DDM
VLAN • VLAN Group: Max 4K VLAN Groups

• 802.1q Tagged VLAN

• MAC VLAN: 30 Entries

• Protocol VLAN: Protocol Template 16, Protocol VLAN 16

• Private VLAN

• GVRP

• VLAN VPN: VLAN Mapping, VLAN Replace

• Voice VLAN
Access Control List • Time-based ACL

• MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type

• IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS

• Combined ACL

• Packet Content ACL

• IPv6 ACL

• Policy: Mirroring, Redirect, Rate Limit, QoS Remark

• ACL applies to Port/VLAN
Security • IP-MAC-Port Binding

- 512 Entries

- DHCP Snooping

- ARP Inspection

- IPv4 Source Guard: 100 Entries

• IPv6-MAC-Port Binding

- 512 Entries

- DHCPv6 Snooping

- ND Detection

- ND Snooping

- IPv6 Source Guard: 100 Entries

• DoS Defend

• DHCP Filter

• Static/Dynamic Port Security: Up to 64 MAC addresses per port

• Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode

• 802.1X

- Port-based authentication

- Mac-base authentication

- VLAN Assignment

- MAB

- Guest VLAN

- Radius authentication and accountability support

• AAA (including TACACS+)

• Port Isolation

• Secure web management through HTTPS with SSLv3/TLS 1.2

• Secure Command Line Interface (CLI) management with SSHv1/SSHv2

• IP/Port/MAC-based access control
IPv6 • IPv6 Dual IPv4/IPv6

• Multicast Listener Discovery (MLD) Snooping

• IPv6 ACL

• IPv6 Interface

• Static IPv6 Routing

• IPv6 neighbor discovery (ND)

• Path maximum transmission unit (MTU) discovery

• Internet Control Message Protocol (ICMP) version 6

• TCPv6/UDPv6

• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs • MIB II (RFC1213)

• Interface MIB (RFC2233)

• Ethernet Interface MIB (RFC1643)

• Bridge MIB (RFC1493)

• P/Q-Bridge MIB (RFC2674)

• RMON MIB (RFC2819)

• RMON2 MIB (RFC2021)

• Radius Accounting Client MIB (RFC2620)

• Radius Authentication Client MIB (RFC2618)

• Remote Ping, Traceroute MIB (RFC2925)

• Support TP-Link private MIB
MANAGEMENT
Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller
Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features • Web-based GUI

• Command Line Interface (CLI) through the console port, telnet

• SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups)

• SDM Template

• DHCP/BOOTP Client

• 802.1ab LLDP/LLDP-MED

• DHCP AutoInstall

• Dual Image, Dual Configuration

• CPU Monitoring

• Cable Diagnostics

• EEE

• Password Recovery

• SNTP

• System Log
OTHERS
Certification CE, FCC, RoHS
Package Contents • SX3206HPP Switch

• Power Cord

• Quick Installation Guide

• Rackmount Kit

• Rubber Feet
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
Environment • Operating Temperature: 0–50 ? (32–122 ?);

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

Specifikace:
