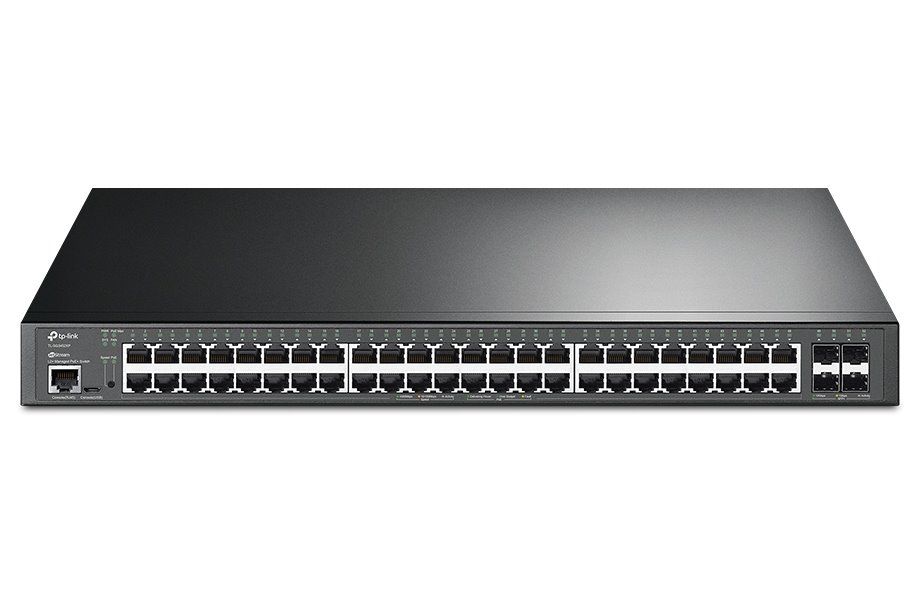

TP-Link OMADA TL-SG3452XP JetStream 52-port Gigabit L2+ / 48x Gigabit PoE+ / 4x 10G

Popis produktu:

TP-Link OMADA SG3452XP
OMADA 48-Port Gigabit a 4-Port 10GE SFP+ L2+ Managed Switch s 48-Port PoE+

Bleskurychlé odchozí připojení 10G – 4 sloty SFP+ s rychlostí 10 Gbit/s umožňují vysoce propustné širokopásmové připojení a přepínací kapacitu bez blokování.
Napájení PoE+ s výstupním výkonem až 500 W – 48 gigabitových portů podporujících standardy 802.3af/at a napájení PoE+ s výstupním výkonem 500 W poskytuje různé možnosti využití a flexibilní nasazení.
Centralizovaná cloudová správa – integrace s platformou Omada SDN umožňuje cloudový přístup a vzdálenou správu.
Velké množství L2 a L2+ funkcí – podporuje kompletní sadu L2 a L2+ funkcí včetně statického směrování, QoS na podnikové úrovni, IGMP Snooping a další.
Robustní bezpečnostní strategie – pomáhá chránit investice do místní sítě pomocí integrované funkce vázání na IP-MAC-Port, ACL, zabezpečením portů, ověřováním 802.1X a dalšími funkcemi.
Samostatná správa – webové rozhraní, CLI (konzole port, Telnet, SSH), SNMP, RMON a Dual Image přináší komplexní možnosti správy.

Více informací o TP-Link PoE technologii >
Více informací o Omada SDN >
Více informací o 10G Multi-Gigabit řešení >?


Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-sdn-switch/sg3452xp/
Technické specifikace




HARDWARE FEATURES



Interface
• 48× 10/100/1000 Mbps RJ45 PoE+ Ports
• 4× 10G SFP+ Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port


Fan Quantity
3


Power Supply
100-240 V AC~50/60 Hz


PoE+ Ports(RJ45)
• Standard: 802.3at/af compliant
• PoE+ Ports: 48 Ports, up to 30 W per port
• Power Budget: 500 W*


Dimensions ( W x D x H )
17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)


Mounting
Rack Mountable


Max Power Consumption
• 49.19 W (110V/60Hz) ( no PD device connected)
• 635.7 W (110V/60Hz) ( with 500 W PD device connected)


Max Heat Dissipation
• 167.85 BTU/hr (110 V/60 Hz) (no PD connected)
• 2169.2 BTU/hr (110 V/60 Hz) (with 500 W PD connected)


PERFORMANCE



Switching Capacity
176 Gbps


Packet Forwarding Rate
130.9 Mpps


MAC Address Table
16 K


Packet Buffer Memory
12 Mbit


Jumbo Frame
9 KB


SOFTWARE FEATURES



Quality of Service
• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
• Bandwidth Control
- Port/Flow based Rating Limiting
• Smoother Performance
• Action for Flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark


L2 and L2+ Features
• Link Aggregation
- static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups, containing 8 ports per group
• Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, Root Protect
• Loopback Detection
- Port based
- VLAN based
• Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both


L2 Multicast
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
• IGMP Authentication
• MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
• MVR
• Multicast Filtering: 256 profiles and 16 entries per profile


VLAN
• VLAN Group
- Max 4K VLAN Groups
• 802.1Q Tagged VLAN
• MAC VLAN: 30 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• Private VLAN
• GVRP
• VLAN VPN (QinQ)
- Port-Based QinQ
- Selective QinQ
• Voice VLAN


Access Control List
• Time-based ACL
• MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
• IP ACL
-Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority
• Combined ACL
• Packet Content ACL
• IPv6 ACL
• Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
• ACL apply to Port/VLAN


Security
• IP-MAC-Port Binding
- 512 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard: 100 Entries
• IPv6-MAC-Port Binding
- 512 Entries
- DHCPv6 Snooping
- ND Detection
- IPv6 Source Guard: 100 Entries
• DoS Defend
• Static/Dynamic Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
• 802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support Radius authentication andaccountability
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control


IPv6
• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP


L3 Features
• 16 IPv4/IPv6 Interfaces
• Static Routing
- 48 static routes
• Static ARP
- 128 Static Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
• DHCP L2 Relay


Advanced Features
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule


MIBs
• MIB II (RFC1213)
• Interface MIB (RFC2233)
• Ethernet Interface MIB (RFC1643)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIB


MANAGEMENT



Omada App
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.


Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller


Cloud Access
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.


Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.


Management Features
• Web-based GUI
• Command Line Interface (CLI) through the console port, telnet
• SNMP v1/v2c/v3
- Trap/Inform
- RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log


OTHERS



Certification
CE, FCC, RoHS


Package Contents
• TL-SG3452XP Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet


System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.


Environment
• Operating Temperature: 0–40 °C (32–104 °F);
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
