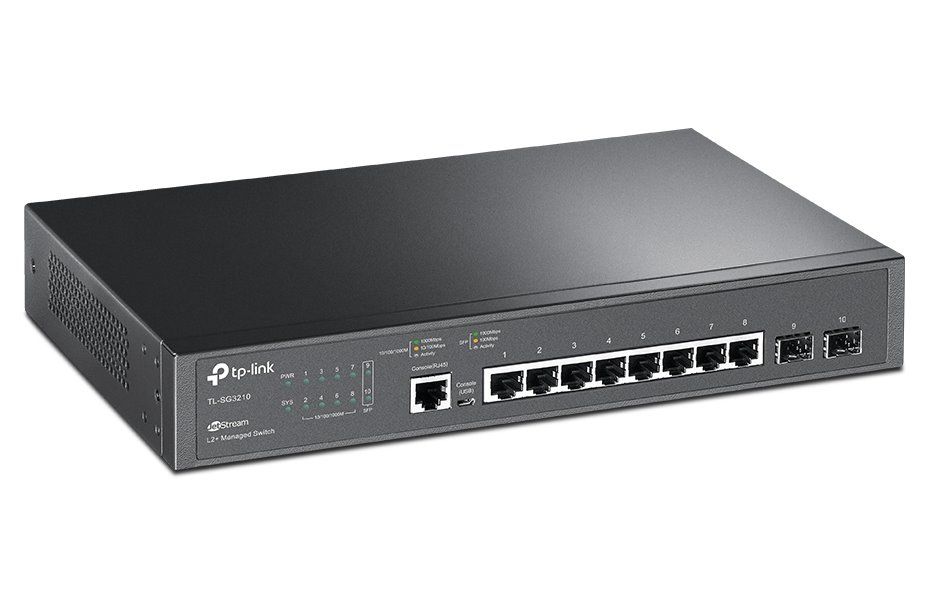

TP-Link OMADA TL-SG3210 - JetStream 8-Port Gigabit L2+ Managed Switch/ 2x Gigabit SFP Slot

Popis produktu:

TP-Link JetStream switch SG3210
8portový gigabitový L2+ řízený switch JetStream se 2 SFP sloty

Plně gigabitové porty -8 gigabitových portů RJ45 a 2 porty SFP poskytují vysokorychlostní připojení.
Integrováno do platformy Omada SDN - Funkce ZTP (Zero-Touch Provisioning)*, centralizovaná cloudová správa a inteligentní monitorování.
Centralizovaná správa - Cloudový přístup a aplikace Omada pro maximální pohodlí a snadnou správu.
Statické směrování - Pomáhá směrovat tok dat po lokální síti, čímž zajišťuje efektivní využívání síťových prostředků.
Robustní strategie zabezpečení - Funkce vázání na adresu IP-MAC, ACL, zabezpečení portů, ochrana proti útokům DoS, funkce Storm Control, funkce DHCP Snooping, ověřování protokolem 802.1X a Radius a další funkce.
Optimalizovaný přenos hlasu a videa v aplikacích - L2/L3/L4 QoS a funkce IGMP Snooping.
Samostatná správa - Webové rozhraní, CLI (konzolový port, Telnet, SSH), SNMP, RMON a funkce Dual Image přináší pokročilé možnosti správy.


Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-sdn-switch/tl-sg3210/
Technické specifikace



HARDWARE FEATURES



Interface
• 8× 10/100/1000 Mbps RJ45 Ports
• 2× Gigabit SFP Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port


Fan Quantity
Fanless


Power Supply
100-240 V AC~50/60 Hz


Dimensions ( W x D x H )
11.6×7.1×1.7 in (294×180×44 mm)


Mounting
Rack Mountable / Desktop


Max Power Consumption
6.84 W (220 V/50 Hz)


Max Heat Dissipation
23.33 BTU/h (220 V/50 Hz)


PERFORMANCE



Switching Capacity
20 Gbps


Packet Forwarding Rate
14.89 Mpps


MAC Address Table
8K


Jumbo Frame
9 KB


SOFTWARE FEATURES



Quality of Service
• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
• Bandwidth Control
- Port/Flow based Rating Limiting
• Smoother Performance
• Action for Flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark


L2 and L2+ Features
• Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports per group
• Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
• Loopback Detection
- Port-based
- VLAN based
• Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both


L2 Multicast
• Supports 511 (IPv4, IPv6) IGMP groups
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
• IGMP Authentication
• MVR
• MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
• Multicast Filtering: 256 profiles and 16 entries per profile


VLAN
• VLAN Group
- Max 4K VLAN Groups
• 802.1q Tagged VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• GVRP
• VLAN VPN (QinQ)
- Port-Based QinQ
- Selective QinQ
• Voice VLAN


Access Control List
• Time-based ACL
• MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
• IP ACL
- Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority
• Combined ACL
• Packet Content ACL
• IPv6 ACL
• Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
• ACL apply to Port/VLAN


Security
• IP-MAC-Port Binding
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
• IPv6-MAC-Port Binding
- DHCPv6 Snooping
- ND Detection
- IPv6 Source Guard
• DoS Defend
• Static/Dynamic Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio/pps control mode
• IP/Port/MAC based access control
• 802.1X
- Port based authentication
- Mac based authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support Radius authentication and
accountability
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2


IPv6
• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP


L3 Features
• 16 IPv4/IPv6 Interfaces
• Static Routing
- 48 static routes
• Static ARP
• 316 ARP Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay
• DHCP L2 Relay


Management
• Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log


Advanced Features
• Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• ZTP (Zero-Touch Provisioning)*


OTHERS



Certification
CE, FCC, RoHS


Package Contents
•TL-SG3210 Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet


Environment
• Operating Temperature: 0°C–45°C (32°F–113°F);
• Storage Temperature: -40°C–70°C (-40°F–158°F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
