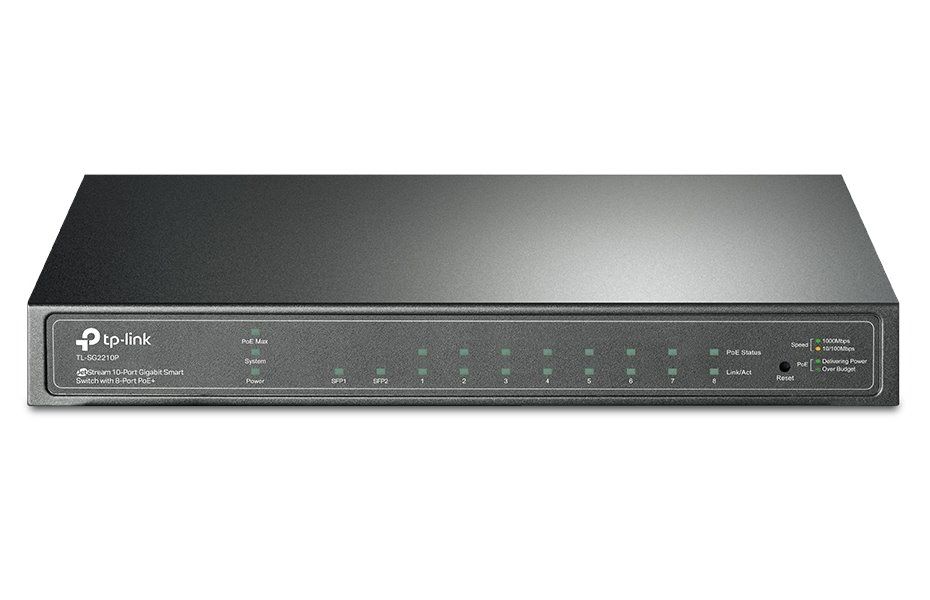

TP-Link OMADA TL-SG2210P JetStreamt 10portový gigabitový inteligentní switch JetStream

Popis produktu:

TP-Link JetStream switch SG2210P
10portový gigabitový inteligentní switch JetStream s 8 porty PoE+ a 2 SFP porty

PoE s rozpočtem napájení 61 W: 8 portů PoE+ vyhovujících standardu 802.3af/at s celkovým napájecím výkonem 61 W.
Plně gigabitové porty: 8 gigabitových portů PoE+ a 2 sloty SFP poskytují vysokorychlostní připojení.
Integrováno do platformy Omada SDN: Funkce ZTP (Zero-Touch Provisioning), centralizovaná cloudová správa a inteligentní monitorování
Centralizovaná správa: Cloudový přístup a aplikace Omada pro maximální pohodlí a snadnou správu.
Robustní strategie zabezpečení: Funkce vázání na adresu IP-MAC, ACL, zabezpečení portů, ochrana proti útokům DoS, funkce Storm Control, funkce DHCP Snooping, ověřování protokolem 802.1X a Radius a další funkce.
Optimalizované hlasové a video aplikace: L2/L3/L4 QoS a funkce IGMP Snooping.
Samostatná správa: Webové rozhraní, CLI (Telnet, SSH), SNMP, RMON a funkce Dual Image přináší pokročilé možnosti správy.

Více informací o technologii TP-Link PoE >
Zjistit více o Omada Cloud SDN>?

Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-sdn-switch/tl-sg2210p/
Technické specifikace



HARDWARE FEATURES



Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,
IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x


Interface
8 10/100/1000Mbps RJ45 Ports
2 1000Mbps SFP Slots
(Auto-Negotiation/Auto MDI/MDIX)


Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF


Fan Quantity
Fanless


Power Supply
100~240VAC, 50/60Hz
External Power Adapter(Output: 53.5VDC/1.31A)


Power Consumption
• 10.3 W (220 V/50 Hz) (no PD connected)
• 76.5 W (220 V/50 Hz) (with 61 W PD connected)


PoE Ports (RJ45)
• Standard: 802.3af/at compliant
• PoE Ports: 8 Ports
• Power Supply: 61 W*


Dimensions ( W x D x H )
8.2 x 4.9 x 1.0 in (209 x 126 x 26mm)


Mounting
Desktop / Wall-Mounting


Max Power Consumption
• V3.2: 76.5 W (220 V/50 Hz) (with 61 W PD connected); 10.3 W (220 V/50 Hz) (no PD connected)
• V4: 74.4 W (220 V/50 Hz) (with 61 W PD connected)
• V5: 77.8 W (110 V/60 Hz) (with 61 W PD connected)


Max Heat Dissipation
• V3.2: 261.02 BTU/hr (220 V/50 Hz) (with 61 W PD connected); 35.14 BTU/hr (220 V/50 Hz) (no PD connected)
• V4: 253.89 BTU/hr (220 V/50 Hz) (with 61 W PD connected)
• V5: 265.3 BTU/hr (110 V/60 Hz) (with 61 W PD connected)


PERFORMANCE



Switching Capacity
20 Gbps


Bandwidth/Backplane
20 Gbps


Packet Forwarding Rate
14.88 Mpps


MAC Address Table
8K


Packet Buffer Memory
4.1 Mbit


Jumbo Frame
9 KB


SOFTWARE FEATURES



Quality of Service
• 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port/Flow based Rating Limit
• Smoother Performance
• Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control


L2 and L2+ Features
• 16 IP Interfaces
- Support IPv4/IPv6 Interface
• Static Routing
- 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports
per group
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect,
Root Protect
• Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED


VLAN
• VLAN Group
- Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN
• Protocol VLAN
• GVRP
• Voice VLAN


Access Control List
• Support up to 230 entries
• Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
• Time-based ACL
• MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
• IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
• IPv6 ACL
• Combined ACL
• Rule Operation
- Permit/Deny
• Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
• ACL Rules Binding
- Port Binding
- VLAN Binding
• Actions for flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark


Security
• AAA
• 802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and
accountability
• IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
• IP Source Guard
- 253 Entries
- Source IP+Source MAC
• IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with
SSLv3/TLS 1.2
• Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
• IP/Port/MAC based access control


IPv6
• IPv6 Static Routing and ACL
• IPv6 Dual IPv4/IPv6
• IPv6 Interface
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP)
version 6
• TCPv6/UDPv6
• IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet(v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP


Management
• Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log


Advanced Features
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule


MIBs
• MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)


MANAGEMENT



Omada App
Yes, through
• Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4)
• OC300
• OC200
• Omada Software Controller


Centralized Management
• Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4)
• Omada Hardware Controller OC300
• Omada Hardware Controller OC200
• Omada Software Controller


Cloud Access
Yes, through
• Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4)
• OC300
• OC200
• Omada Software Controller


Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210P v3.2, v5 and above, while is not supported by TL-SG2210P v4)


Management Features
• Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log


OTHERS



Certification
CE, FCC, RoHS


Package Contents
TL-SG2210P
Power Adapter
Installation Guide
Rubber Feet


System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC OS, NetWare, UNIX or Linux.


Environment
Operating Temperature: 0°C~40°C (32°F~104°F);
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
