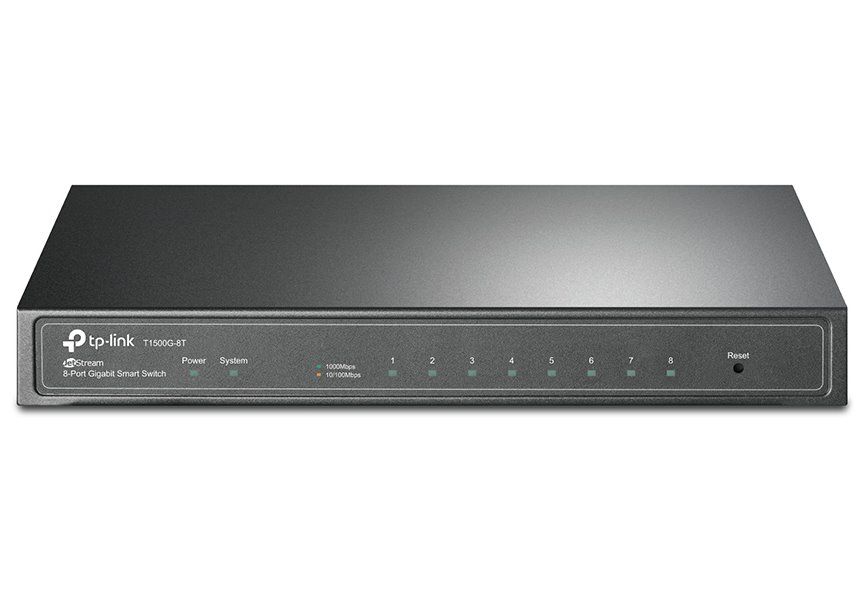

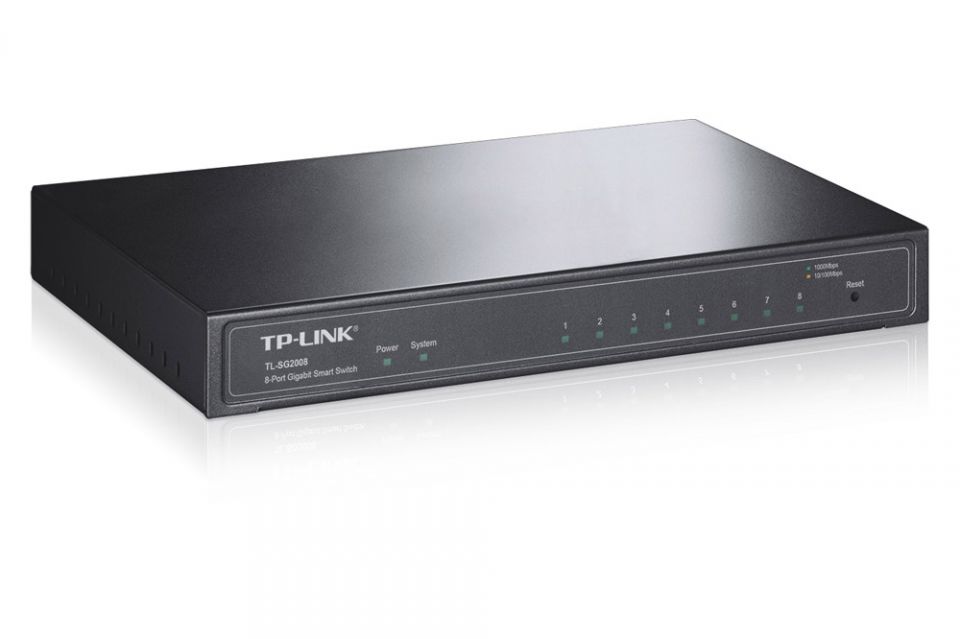

TP-LINK OMADA T1500G-8T(TL-SG2008) 8-port Pure-Gigabit Desktop Smart Switch

Popis produktu:

TP-Link JetStream switch TL-SG2008
8portový gigabitový inteligentní switch JetStream

Plně gigabitové porty: 8 gigabitových portů RJ45 poskytuje vysokorychlostní připojení. 8. port může přijímat napájení ze zdroje kompatibilního s PoE (Power Sourcing Equipment, PSE).
Integrováno do platformy Omada SDN: funkce ZTP (Zero-Touch Provisioning), centralizovaná cloudová správa a inteligentní monitorování.
Centralizovaná správa: cloudový přístup a aplikace Omada pro maximální pohodlí a snadnou správu
Robustní strategie zabezpečení: 802.1Q VLAN, ACL, zabezpečení portů, Storm Control a další.
Optimalizovaný přenos hlasu a videa v aplikacích: L2/L3/L4 QoS a funkce IGMP Snooping.
Univerzální správa: řízené režimy WEB/CLI, SNMP a RMON poskytují bohaté možnosti správy.

Další informace o Omada Cloud SDN>

Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-sdn-switch/tl-sg2008/
Technické specifikace




HARDWARE FEATURES



Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x


Interface
8 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)


Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)


Fan Quantity
Fanless


Power Supply
• 12 VDC/1 A External Adapter or
• Obtain Power from PoE Source


Power Consumption
6.4 W (220 V/50 Hz)


Dimensions ( W x D x H )
8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)


PERFORMANCE



Bandwidth/Backplane
16 Gbps


Packet Forwarding Rate
11.9 Mpps


MAC Address Table
8K


Packet Buffer Memory
4.1 Mbit


Jumbo Frame
9 KB


SOFTWARE FEATURES



Quality of Service
• 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port/Flow based Rating Limit
• Smoother Performance
• Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control


L2 and L2+ Features
• 16 IP Interfaces
- Support IPv4/IPv6 Interface
• Static Routing
- 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports
per group
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect,
Root Protect
• Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED


VLAN
• VLAN Group
- Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN


Access Control List
• Support up to 230 entries
• Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
• Time-based ACL
• MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
• IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
• IPv6 ACL
• Combined ACL
• Rule Operation
- Permit/Deny
• Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
• ACL Rules Binding
- Port Binding
- VLAN Binding
• Actions for flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark


Security
• AAA
• 802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and
accountability
• IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
• IP Source Guard
- 253 Entries
- Source IP+Source MAC
• IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with
SSLv3/TLS 1.2
• Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
• IP/Port/MAC based access control


Advanced Features
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule


MANAGEMENT



Omada App
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.


Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller


Cloud Access
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.


Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.


Management Features
• Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log


OTHERS



Certification
CE, FCC, RoHS


Package Contents
• TL-SG2008
• Power Adapter
• Installation Guide
• Rubber Feet


System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.


Environment
• Operating Temperature: 0°C~40°C (32°F~104°F);
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
