TP-Link OMADA ER7212PC Gigabit VPN Router, 8x PoE+, 2x Gbit SFP, 1x Gbit WAN + 1x Gbit LA

Popis produktu:

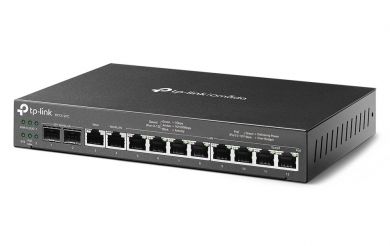

TP-Link ER7212PC
Gigabitový VPN router Omada 3 v 1

Router 3 v 1: Plní funkci routeru, PoE switche a kontroleru Omada.
Profesionální hardware: Dvoujádrový procesor 1,2 GHz s 1 GB paměti DDR3 zajišťuje více než dostatek výkonu až pro 12 gigabitových portů.
Až 4 ethernetové porty WAN: 2 gigabitové porty SFP WAN/LAN, 1 gigabitový port RJ45 WAN a 1 gigabitový port RJ45 WAN/LAN.
PoE s výstupním napájením 110 W: 8 portů PoE+ RJ45 LAN odpovídajících standardu 802.3at/af s celkovým výstupním napájením 110 W.
Centralizovaná správa: Cloudový přístup a aplikace Omada pro pohodlnou a snadnou správu.
VPN s vysokým zabezpečením: Podporuje připojení IPsec VPN, OpenVPN a L2TP/PPTP VPN.
Snadná instalace: Kompaktní provedení bez ventilátoru pro umístění na stůl nebo montáž na stěnu.

Více informací o Omada Cloud SDN>?

Stránky produktu: https://www.tp-link.com/cz/business-networking/vpn-router/er7212pc/
Technické specifikace



HARDWARE FEATURES



Standards and Protocols
• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP


Interface
• 2 Gigabit SFP WAN/LAN ports
• 1 Gigabit WAN port
• 1 Gigabit LAN/WAN port
• 8 Gigabit LAN ports


Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
EIA/TIA-568 100Ohm STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
EIA/TIA-568 100Ohm STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)


Fan Quantity
Fanless


Button
Reset Button


Power Supply
53.5VDC/2.43A Adapter


PoE Budget
8 ports PoE+ output, 110 W PoE Budget


Flash
8Mb Nor + 4 GB EMMC


DRAM
1 GB DDR3


Dimensions (WxDxH)
8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)


Protection
4 kV surge protection


Enclosure
Steel


Mounting
Desktop/Wall-mount


PERFORMANCE



Concurrent Session
24,980


New Sessions /Second
1,900


NAT (Static IP)
935.5 Mbps / 942.1 Mbps


NAT(DHCP)
940.2 Mbps / 941.7 Mbps


NAT(PPPoE)
913.1 Mbps / 935.2 Mbps


NAT (L2TP)
545.0 Mbps / 912.7 Mbps


NAT (PPTP)
523.0 Mbps / 912.8 Mbps


IPsec VPN Throughput (AES256)
168.5 Mbps


OpenVPN
34 Mbps


L2TP VPN Throughput
• Unencrypted: 845.3 Mbps
• Encrypted: 333.2 Mbps


PPTP VPN Throughput
• Unencrypted: 1012.6 Mbps
• Encrypted: 401.4 Mbps


66 Byte Packet forwarding rate
154,069 pps / 156,977 pps


1,518 Byte Packet forwarding rate
81,193 pps / 81,193 pps


BASIC FUNCTIONS



WAN Connection Type
• Static IP
• Dynamic IP
• PPPoE
• PPTP
• L2TP


DHCP
• DHCP Server
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP


IPv6
support


VLAN
802.1Q VLAN


IPTV
IGMP v2/v3 Proxy


ADVANCED FUNCTIONS



Advanced Routing
• Static Routing• Policy Routing


Bandwidth Control
IP/Port-based Bandwidth Control


Load Balance
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup
• Online Detection


NAT
• Multi-Net NAT
• Virtual Server
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP


Session Limit
IP-based Session Limit


VPN



IPsec VPN
• 20 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• AES128, AES192, AES256 Encryption Algorithm
• IKE v1/v2
• SHA1, SHA2 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)


PPTP VPN
• PPTP VPN Server
• PPTP VPN Client (10)
• 16 Tunnels
• PPTP with MPPE Encryption


L2TP VPN
• L2TP VPN Server
• L2TP VPN Client (10)
• 16 Tunnels
• L2TP over IPSec


OpenVPN
• OpenVPN Server
• OpenVPN Client (10)
• 16 OpenVPN Tunnels


SECURITY



Filtering
URL Filtering


Attack Defense
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN


Access Control
Source/Destination IP Based Access Control


AUTHENTICATION



Web Authentication
• No Authentication
• Simple Password
• Hotspot (Local User / Voucher / SMS / Radius)
• External Radius Sever
• External Portal Sever
• Facebook


MANAGEMENT



Omada App
Yes


Cloud Access
Yes


Service
Dynamic DNS (Dyndns, No-IP)


Maintenance
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Syslog Support


Management Features
• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• Management up to 1 Router, 2 Switches and 10 EAPs


OTHERS



Certification
CE, FCC, RoHS


Package Contents
• ER7212PC
• Power Adapter
• Power Cord
• Quick Installation Guide


System Requirements
• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
• MAC OS, NetWare, UNIX or Linux


Environment
• Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
