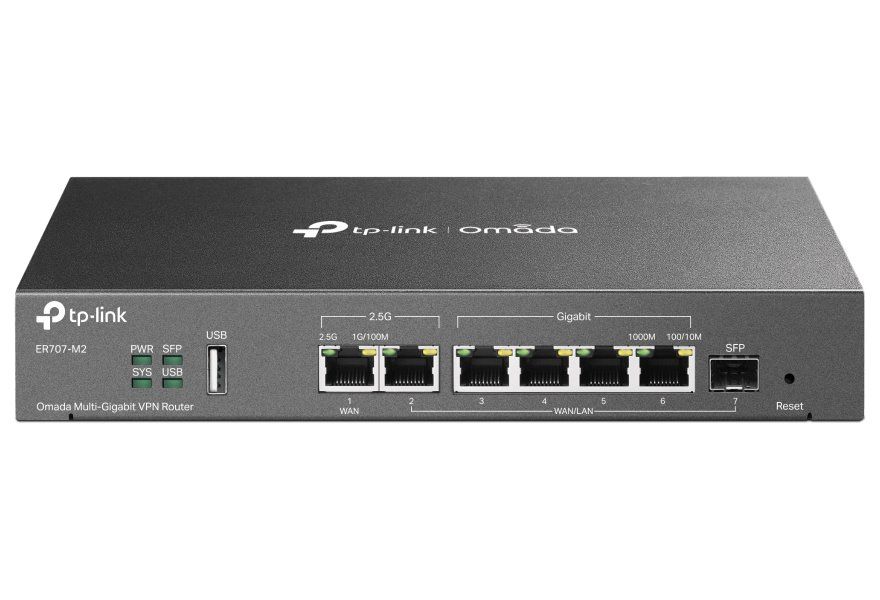

TP-Link OMADA ER707-M2 Multi-Gigabit VPN Router

Popis produktu:

TP-Link ER707-M2
Omada Multi-Gigabit VPN Router

Dva 2,5G porty: 1× 2,5G WAN a 1× 2,5G WAN/LAN porty poskytují vysokorychlostní agregační konektivitu.
Až 6 portů WAN: 2,5G RJ45, gigabitové vlákno a gigabitové RJ45 WAN porty s vyvážením zátěže zvyšují míru využití vícelinkového širokopásmového připojení.
Vysoce bezpečná VPN: SSL/IPSec/GER/PPTP/L2TP VPN a OpenVPN jsou ideální pro použití ve více pobočkách a pro WFH.
Integrováno do Omada SDN: Podporuje Zero-Touch Provisioning (ZTP), centralizovanou správu cloudu, inteligentní monitorování a další.
Centralizovaná správa: Přístup ke cloudu a aplikace Omada poskytují maximální pohodlí při správě.
Rozsáhlé funkce zabezpečení: Chraňte svou síť a data pomocí pokročilých zásad brány firewall, obrany proti DoS, filtrování IP/MAC/URL a dalších funkcí zabezpečení.

Více informací o Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/cz/business-networking/vpn-router/er707-m2/
Technické specifikace



HARDWARE FEATURES



Standards and Protocols
• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP


Interface
• 1× 2.5G RJ45 WAN Port
• 1× 2.5G RJ45 WAN/LAN Port
• 1× Gigabit SFP WAN/LAN Port
• 4× Gigabit RJ45 WAN/LAN Ports
• 1× USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle)


Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)


Fan Quantity
Fanless


Button
Reset Button


Power Supply
12V/1.5A Adapter


PoE Budget
-


Flash
128MB NAND


DRAM
1 GB DDR4


LED
PWR, SYS, SFP, USB, WAN (Speed, Link/Act), LAN (Speed, Link/Act)


Dimensions ( W x D x H )
8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)


Protection
4 kV surge protection


Enclosure
Steel


Mounting
Desktop/Wall Mounting


Max Power Consumption
14.2 W (with USB2.0 connected)
7.1 W (without USB2.0 connected)


PERFORMANCE



Concurrent Session
500


New Sessions /Second
4,2


NAT (Static IP)
2364.45 Mbps / 2343.28 Mbps


NAT(DHCP)
2364.24 Mbps / 2326.21 Mbps


NAT(PPPoE)
2350.93 Mbps / 2125.83 Mbps


NAT (L2TP)
1249.04 Mbps / 831.12 Mbps


NAT (PPTP)
1169.23 Mbps / 1175.52 Mbps


IPsec VPN Throughput
ESP-MD5-AES256: 537.12 Mbps
ESP-SHA1-AES256: 754.65 Mbps


L2TP VPN Throughput
Unencrypted: 1442.65 Mbps
Encrypted: 346.43 Mbps


SSL VPN Throughput
142.99 Mbps


66 Byte Packet forwarding rate
1832.69 Mbps / 1741.84 Mbps


1,518 Byte Packet forwarding rate
2461.18 Mbps / 2457.32 Mbps


BASIC FUNCTIONS



WAN Connection Type
• IPv4_Static IP
• IPv4_Dynamic IP
• IPv4_PPPOE
• IPv4_L2TP
• IPv4_PPTP
• IPv6_PPP
• IPv6_DHCPv6
• IPv6_Static IP
• IPv6_6in4
• IPv6_Pass-Through
• Mobile Broadband: 4G/3G modem for backup via USB port


MAC Clone
Modify WAN/LAN MAC Address†


DHCP
• DHCP Server/Client
• DHCP Address Reservation
• Multi-IP Interfaces*
• Multi-Net DHCP*


IPv6
WAN Connection


VLAN
802.1Q VLAN


IPTV
IGMP v2/v3 Proxy


ADVANCED FUNCTIONS



Advanced Routing
• Static Routing
• Policy Routing


Bandwidth Control
• IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth


Load Balance
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing§, Failover)
• Online Detection


NAT
• One-to-One NAT§
• Multi-Net NAT
• Virtual Server
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP


Security
• Attack Defense:
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN

• Filtering
Web Group Filtering
URL Filtering
Web Security

• ARP Inspection:
Sending GARP Packets
ARP Scanning
IP-MAC Binding

• Access Control
Source/Destination IP Based Access Control


Session Limit
IP-based Session Limit


VPN



IPsec VPN
• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)


PPTP VPN
• PPTP VPN Server
• PPTP VPN Clients (12)
• 60 Tunnels (Shared with L2TP)
• PPTP with MPPE Encryption


L2TP VPN
• L2TP VPN Server
• L2TP VPN Clients (12)
• 60 Tunnels (Shared with PPTP)
• L2TP over IPSec


OpenVPN
• OpenVPN Server
• OpenVPN Clients (6)
• 66 OpenVPN Tunnels*


SECURITY



Filtering
WEB Group Filtering§
URL Filtering
Web Security§


ARP Inspection
• Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding§


Attack Defense
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN


Access Control
Source/Destination IP Based Access Control


AUTHENTICATION



Web Authentication
• No Authentication
• Simple Password*
• Hotspot (Local User/Voucher* /SMS*/Radius*)
• External Radius Sever
• External Portal Sever*
• Facebook*


MANAGEMENT



Omada App
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.


Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller


Cloud Access
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.


Service
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)


Maintenance
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3*
• Diagnostics (Ping & Traceroute)§
• NTP Synchronize§
• Syslog Support


Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.


Management Features
• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• ZTP (Zero-Touch Provisioning)


OTHERS



Certification
CE, FCC, RoHS


Package Contents
• ER707-M2
• Power Adapter
• Quick Installation Guide


System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux


Environment
• Operating Temperature: 0–40 °C (32–104 °F);
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% non-condensing
