TP-Link OMADA ER706WP-4G

Popis produktu:

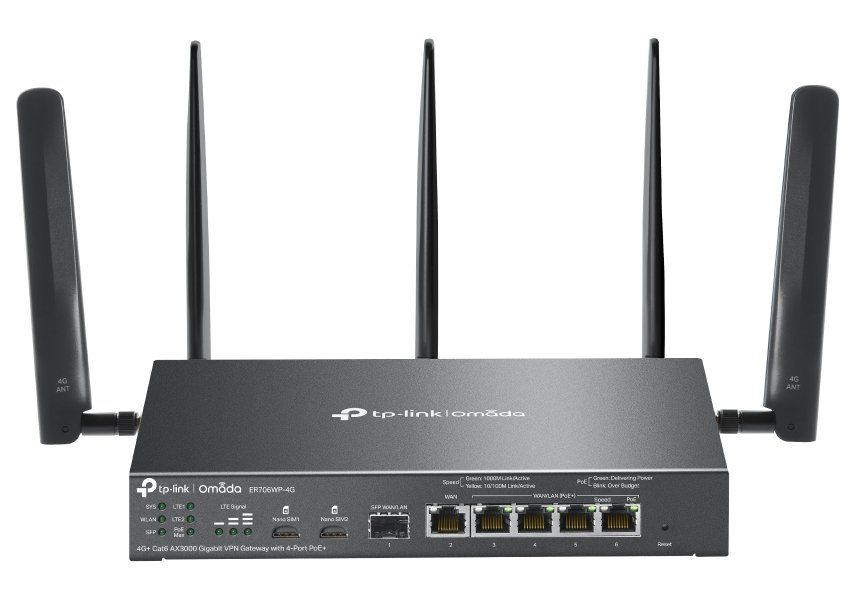

TP-Link OMADA ER706WP-4G
Omada 4G+ Cat6 AX3000 Gigabitová VPN gateway se 4 porty PoE+

Podpora 4G+ Cat6:Vložte kartu Nano SIM a využívejte rychlost až 300 Mb/s.
Dvoupásmový router s Wi-Fi 6 AX3000: Podporuje 2402 Mb/s na frekvenci 5 GHz a 574 Mb/s na frekvenci 2,4 GHz
1 SFP slot a 5 gigabitových ethernetových portů: Poskytují vysokorychlostní kabelové WAN/LAN připojení.
PoE napájení: 4 porty s podporou 802.3af/at PoE, celkový rozpočet až 45 W
5 vysoce ziskových odpojitelných antén: 3 dvoupásmové Wi-Fi antény rozšiřují a koncentrují signály Wi-Fi, 2 odnímatelné LTE antény dovolují použít externí antény v případě potřeby.
Centralizovaná správa:: Cloudový přístup a aplikace Omada pro snadnou správu.
Omada Mesh: Bezproblémové připojení k zařízením EAP, která podporují technologii mesh.
Vysoce zabezpečená síť VPN: Podporuje sítě IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN.

Learn more about Omada Cloud SDN
https://www.tp-link.com/cz/business-networking/omada-router-wifi-router/er706w-4g
Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-router-4g-wifi-router/er706wp-4g/
Technické specifikace


4G
Network Type LTE Band of EU:

• 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/

900/800/700/1450 MHz)

• 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)

• 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8

(2100/1800/850/900 MHz)

Carrier Aggregation of EU:

B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41

B3+B3/B5/B7/B8/B20/B28/B38/B40/B41

B5+B5/B7/B38/B40/B41

B7+B7/B8/B20/B28/B32

B8+B32/B38/B40/B41

B20+B32/B38/B40

B28+B32/B38/B40/B41

B38+B38

B40+B40

B41+B41
SIM Type 2× Nano SIM Card( (4G+ Cat6)
Frequency • Downlink: 300 Mbps;

• Uplink: 50 Mbps
SECURITY
DPI Application control via DPI / Updated app library
IDS/IPS Signature-based IPS/IDS threat detection
Access Control Source/Destination IP Based Access Control
Filtering • Web Group Filtering†

• URL Filtering

• Web Security
ARP Inspection • Sending GARP Packets

• ARP Scanning

• IP-MAC Binding
Attack Defense • TCP/UDP/ICMP Flood Defense

• Block TCP Scan (Stealth FIN/Xmas/Null)

• Block Ping from WAN
HARDWARE FEATURES
Interface • 1 Gigabit SFP WAN/LAN Port

• 1 Gigabit WAN Port

• 4 Gigabit LAN/WAN Ports
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)

• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)

• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Button Reset Button
Power Supply 4 Ports PoE+ Output, 45 W PoE Budget
Wi-Fi Frequency & Signal Rate • 2.4 GHz: 574 Mbps

• 5 GHz: 2402 Mbps (HE160)
Flash 256 MB NAND
DRAM 512 MB DDR4
LED SYS, WLAN, SFP, LTE1, LTE2, PoE Max, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act, PoE)
Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included)
Antenna • Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas

• LTE: Two 4.0dBi omnidirectional detachable antennas
Mounting Desktop/Wall-Mounting/Rackmount
Max Power Consumption 64.9W with PoE Max; 19.8W without PoE
PERFORMANCE
IPS Throughput • TCP: 229 Mbps

• UDP: 188 Mbps
DPI Throughput • TCP: 933 Mbps

• UDP: 927 Mbps
GRE • Unencrypted: 545.3Mbps

• Encrypted: 282.6Mbps
WireGuard VPN 387.7Mbps
Concurrent Session 150
New Sessions /Second 5,1
NAT (Static IP) 947.1Mbps / 940.1Mbps
NAT(DHCP) 949.2Mbps / 941.1Mbps
NAT(PPPoE) 942.6Mbps / 941.1Mbps
NAT (L2TP) 875.4Mbps / 892.0Mbps
NAT (PPTP) 881.2Mbps / 895.8Mbps
IPsec VPN Throughput • ESP-SHA1-AES256: 652.2Mbps

• ESP-SHA256-AES256: 654.4Mbps

• ESP-SHA384-AES256: 646.5Mbps

• ESP-SHA512-AES256: 670.5 Mbps
OpenVPN 115.5Mbps
L2TP VPN Throughput • Unencrypted: 990.0Mbps

• Encrypted: 475.0Mbps
PPTP VPN Throughput • Unencrypted: 1177.9Mbps

• Encrypted: 177.4Mbps
SSL VPN Throughput 122.5Mbps
66 Byte Packet forwarding rate 1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate 81274 pps / 91275 pps
WIRELESS FEATURES
Advanced Functions • Seamless Roaming

• Mesh (with EAP that supports Mesh)

• OFDMA

• Beamforming

• MU-MIMO

• Rate Limit: Based on SSID/Client

• Airtime Fairness

• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise

• Multiple SSIDs: 16 in total (8 per radio)
Guest Network Support
BASIC FUNCTIONS
WAN Connection Type • Static IP

• Dynamic IP

• PPPoE (supports MRU Configuration)

• PPTP

• L2TP
MAC Clone Modify WAN Address
DHCP • DHCP Server

• DHCPv6 PD Server (only in Standalone Mode)

• DHCP Options Customization

• DHCP Address Reservation

• Multi-IP Interfaces

• Multi-Net DHCP
SMS Receive / Send SMS
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
ACL IP/Port/Protocol/Domain Name Filtering
Advanced Routing • Static Routing

• Policy Routing

• RIP

• OSPF
Bandwidth Control IP-Based Bandwidth Control
Load Balance • Intelligent Load Balance

• Application Optimized Routing

• Link Backup(Timing, Failover)

• Online Detection
NAT • One-to-One NAT

• Multi-Net NAT

• Virtual Server

• Port Triggering†

• NAT-DMZ

• FTP/H.323/SIP/IPSec/PPTP ALG

• UPnP
Session Limit IP-Based Session Limit
VPN
GRE Only in Standalone Mode
SSL VPN 50 Tunnels
IPsec VPN • 100 IPSec VPN Tunnels

• LAN-to-LAN, Client-to-LAN

• Main, Aggressive Negotiation Mode

• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm

• IPsec Failover

• IKE v1/v2

• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm

• NAT Traversal (NAT-T)

• Dead Peer Detection (DPD)

• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server

• PPTP VPN Client (10)?

• 50 Tunnels

• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server

• L2TP VPN Client (10)?

• 50 Tunnels

• L2TP over IPSec
OpenVPN • OpenVPN Server

• OpenVPN Client (5)?

• 55 OpenVPN Tunnels

• "Certificate + Account" Mode

• Full Mode
WireGuard VPN • 20 Tunnels
AUTHENTICATION
Web Authentication • No Authentication

• Simple Password§

• Hotspot (Local User / Voucher§ / SMS§ / Radius§)

• External Radius Sever

• External Portal Sever§

• LDAP
MANAGEMENT
Omada App Yes.
Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller
Cloud Access Yes.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance • Web Management Interface

• Remote Management

• Export & Import Configuration

• SNMP v1/v2c/v3

• Diagnostics (Ping & Traceroute)†

• NTP Synchronize†

• Port Mirroring

• CLI (only in Standalone Mode)

• Syslog Support
Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller.
Management Features • Automatic Device Discovery

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

• Captive Portal Configuration
OTHERS
Certification CE, FCC, RoHS
Package Contents • ER706WP-4G

• Power Adapter

• Quick Installation Guide
System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11

• MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)

• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)

• Operating Humidity: 10% to 90% non-condensing

• Storage Humidity: 5% to 90% non-condensing
