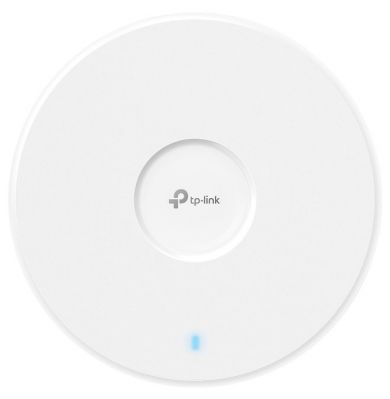

TP-Link OMADA EAP723

Popis produktu:

TP-Link OMADA EAP723
Přístupový bod BE3600 Tri-Band WiFi 7 pro montáž na strop

BE3600 Dual-Band Wi-Fi 7 (2882 Mb/s na 5 GHz + 688 Mb/s na 2.4 GHz).
1× 2.5G port odemyká plný potenciál Wi-Fi 7.
Šířka pásma 160 MHz umožňuje mnohem více simultánních přenosů.
Multi-RUs zajišťují vysoký výkon vaší sítě.
Pokročilé funkce: Centralizovaná správa, Mesh a plynulé roaming.

Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-wifi-ceiling-mount/eap723
Technické specifikace


HARDWARE FEATURES
Interface 1× 2.5G Ethernet Port
Button Reset
Power Supply 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)
Power Consumption • 18.6 W (For PoE);

• 16.0 W (For DC)
Dimensions ( W x D x H ) 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)
Antenna Type • 2.4 GHz: 2× 4.0 dBi

• 5 GHz: 2× 5.0 dBi
Mounting Ceiling / Wall Mounting (Kits Included)
WIRELESS FEATURES
Coverage 140?(1500 ft2)***
Wireless Client Capacity 250+**
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be
Frequency 2.4 GHz and 5 GHz
Signal Rate 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)
Wireless Functions • 4K-QAM‡

• Seamless Roaming

• MU-MIMO‡

• EHT160‡

• Mesh?

• OFDMA‡

• Load Balance

• Band Steering

• Beamforming

• Airtime Fairness

• Multiple SSIDS:16(8 on each band)

• Wireless Schedule

• Reboot Schedule

• QoS(WMM)

• Rate Limit

• Static IP/Dynamic IP

• RADIUS Accounting

• MAC Authentication
Wireless Security • Captive Portal Authentication?

• Access Control

• Maximum number of MAC Filter: 4,000

• Wireless Isolation Between Clients

• VLAN

• Rogue AP Detection

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller
Cloud Access Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Yes
Web-based Management Yes
OTHERS
Certification CE, FCC, RoHS, IC
Package Contents • EAP723

• Installation Guide

• Ceiling/Wall Mounting Kit
Environment • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);

• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Operating Humidity: 10%–90% non-condensing;

• Storage Humidity: 5%–90% non-condensing;
