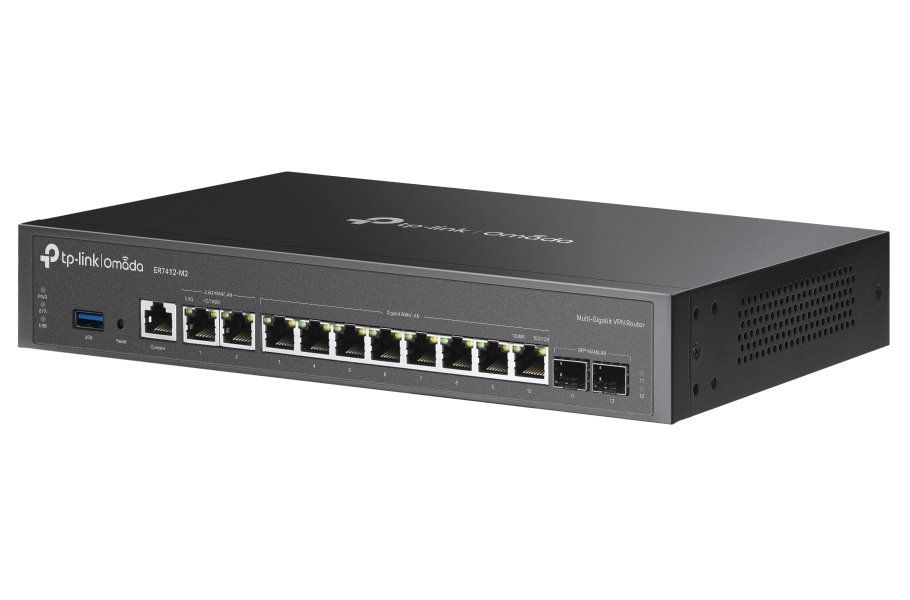

TP-Link ER7412-M2 OMADA VPN router

Popis produktu:

TP-Link ER7412-M2
Omada Multi-Gigabit VPN Router

Čtyřjádrový procesor @2.0GHz
2× 2,5G RJ45 WAN/LAN porty
10× Gigabit WAN/LAN porty (2× SFP, 8× RJ45)
1× port USB 3.0 (podporuje úložiště USB a zálohování LTE pomocí LTE dongle)
Až 11 WAN portů
Vysoce zabezpečené SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
Centralizovaná správa cloudu přes web nebo aplikaci Omada
Ochrana proti DoS, filtrování IP/MAC/URL, DPI a IPS/IDS pro lepší zabezpečení.


Více informací o Omada Cloud SDN>?

Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-router-wired-router/er7412-m2/
Technické specifikace


SECURITY
Access Control • Source/Destination IP-Based ACL

• Stateful ACL

• IPv4/IPv6 ACL

• National Based ACL
Filtering • WEB Group Filtering§

• URL Filtering

• Web Security§
ARP Inspection • Sending GARP Packets§

• ARP Scanning§

• IP-MAC Binding§
Attack Defense • TCP/UDP/ICMP Flood Defense

• Block TCP Scan (Stealth FIN/Xmas/Null)

• Block Ping from WAN


HARDWARE FEATURES
Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q

• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
Interface • 1× 2.5G RJ45 WAN/LAN Port

• 1× 2.5G RJ45 WAN/LAN Port

• 2× Gigabit SFP WAN/LAN Ports

• 8× Gigabit RJ45 WAN/LAN Ports



• 1× RJ45 Console Port

• 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)

• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)

• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

• 2500BASE-T: UTP category 5e, 6 cable (Max 100 m)
Button Reset Button
Power Supply 100–240 VAC, 50/60 Hz
Flash 128MB NAND
DRAM 1 GB DDR4
Dimensions ( W x D x H ) 11.6×7.1×1.7 in (294×180×44 mm)
Protection 4 kV surge protection
Enclosure Steel
Mounting • Desktop

• Rackmountable
Max Power Consumption 18.5W (With USB 3.0 connected)


PERFORMANCE
GRE • Unencrypted: 1153.0 Mbps

• Encrypted: 559.2 Mbps
WireGuard VPN 771.6 Mbps
Concurrent Session 1,000,000
New Sessions /Second 7
NAT (Static IP) 2345.71 Mbps / 2351.22 Mbps
NAT(DHCP) 2353.41 Mbps / 2353.40 Mbps
NAT(PPPoE) 2336.52 Mbps / 2336.08 Mbps
NAT (L2TP) 1937.53 Mbps / 1761.82 Mbps
NAT (PPTP) 1757.54 Mbps / 2011.33 Mbps
IPsec VPN Throughput • ESP-SHA1-AES256: 1125.60 Mbps

• ESP-SHA256-AES256: 1133.1 Mbps

• ESP-SHA384-AES256: 1126.6 Mbps

• ESP-SHA512-AES256: 1132.8 Mbps
OpenVPN UDP: 266.2 Mbps
L2TP VPN Throughput • Unencrypted: 2724.5 Mbps

• Encrypted: 1018.4Mbps
PPTP VPN Throughput • Unencrypted: 3035 Mbps

• Encrypted: 534.6 Mbps
SSL VPN Throughput 263.1 Mbps
66 Byte Packet forwarding rate 1833 Mbps / 1835 Mbps
1,518 Byte Packet forwarding rate 2461 Mbps / 2461 Mbps


BASIC FUNCTIONS
WAN Connection Type • Static IP/Dynamic IP

• PPPoE (supports MRU Configuration)

• PPTP

• L2TP

• Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone Modify WAN/LAN MAC Address†
DHCP • DHCP Server

• DHCPv6 PD Server (only in Standalone Mode)

• DHCP Options Customization

• DHCP Address Reservation

• Multi-IP Interfaces

• Multi-Net DHCP
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode


ADVANCED FUNCTIONS
Advanced Routing • Static Routing

• Policy Routing

• RIP (available in Standalone Mode)

• OSPF (available in Standalone Mode)
Bandwidth Control IP/Port-based Bandwidth Control
Load Balance • Intelligent Load Balance

• Application Optimized Routing

• Link Backup (Timing, Failover)

• Online Detection
NAT • One-to-One NAT§

• Multi-Net NAT

• Virtual Server

• Port Triggering§

• NAT-DMZ

• FTP/H.323/SIP/IPSec/PPTP ALG

• UPnP
Session Limit IP-based Session Limit


VPN
GRE Only in Standalone Mode
SSL VPN 80 Tunnels
IPsec VPN • 150 IPSec VPN Tunnels

• LAN-to-LAN, Client-to-LAN

• Main, Aggressive Negotiation Mode

• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm

• IPsec Failover

• IKE v1/v2

• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm

• NAT Traversal (NAT-T)

• Dead Peer Detection (DPD)

• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server

• PPTP VPN Client (15)**

• 150 Tunnels

• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server

• L2TP VPN Client (15)**

• 150 Tunnels

• L2TP over IPSec
OpenVPN • OpenVPN Server

• OpenVPN Client (11)**

• 121 OpenVPN Tunnels

• "Certificate + Account" Mode

• Full Mode


AUTHENTICATION
Web Authentication • No Authentication

• Simple Password*

• Hotspot (Local User/Voucher*/SMS*/Radius*)

• External Radius Server

• External Portal Server*

• LDAP


MANAGEMENT
Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller
Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance • Web Management Interface

• Remote Management

• Export & Import Configuration

• SNMP v1/v2c/v3*

• Diagnostics (Ping & Traceroute)§

• NTP Synchronize§

• Port Mirroring

• CLI (only in Standalone Mode)

• Syslog Support
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features • Automatic Device Discovery*

• Batch Configuration*

• Batch Firmware Upgrading*

• Intelligent Network Monitoring*

• Abnormal Event Warnings*

• Unified Configuration*

• Reboot Schedule*


OTHERS
Certification CE, FCC
Package Contents • ER7412-M2

• Power Cord

• Quick Installation Guide

• Rackmount Kit

• RJ45 Console Cord
System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11

• MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0–45 ? (32–113 ?);

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% non-condensing

Specifikace:
