TP-Link ER706W VPN router

Popis produktu:

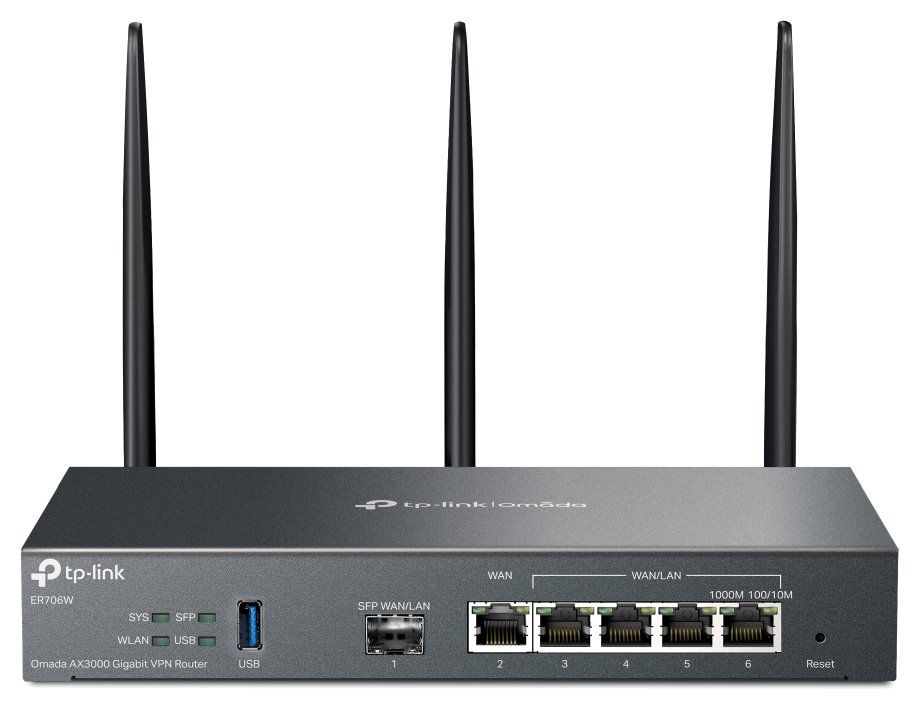

TP-Link ER706W
Omada AX3000 Gigabitový VPN router

AX3000 Dual-Band WiFi: Podporuje 2402 Mbps na 5 GHz a 574 Mbps na 2,4 GHz
6 gigabitových ethernetových portů: 1 gigabitový SFP a 5 gigabitových RJ45 portů poskytují vysokorychlostní kabelové připojení.
Technologie Omada Mesh: Bezproblémové připojení k EAP, které podporují technologii mesh, ideální pro rozsáhlé scénáře.
Centralizovaná správa: Přístup ke cloudu a aplikace Omada pro maximální pohodlí a snadnou správu.
Zvýšené pokrytí: Trojité externí antény rozšiřují a koncentrují signály Wi-Fi.
High-Security VPN: Podporuje více protokolů VPN včetně IPSec / SSL / Wireguard / PPTP / L2TP VPN, což uživatelům pomáhá flexibilněji vytvářet vzdálená připojení.
Bohaté bezpečnostní funkce: Pokročilé zásady brány firewall, obrana DoS, filtrování IP/MAC/URL a další bezpečnostní funkce chrání vaši síť a data.

Learn more about Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/cz/business-networking/vpn-router/er706w/
Technické specifikace




SECURITY



Access Control
Source/Destination IP Based Access Control


Filtering
• Web Group Filtering†
• URL Filtering
• Web Security†


ARP Inspection
• Sending GARP Packets
• ARP Scanning†
• IP-MAC Binding


Attack Defense
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN


HARDWARE FEATURES



Interface
• 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports
• 1 USB3.0 (supports USB LTE dongle and USB Storage)


Button
Reset Button


Power Supply
12VDC / 2A Power Adapter


Wi-Fi Frequency & Signal Rate
• 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160)


Flash
128 MB NAND


DRAM
512 MB DDR4


Dimensions ( W x D x H )
8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not
included)


Antenna
• 2.4 GHz: 2x 3 dBi dual-band detachable antennas
• 5 GHz: 3x 4.5 dBi dual-band detachable antennas


Mounting
Desktop/Wall-mounting


Max Power Consumption
• EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected)
• US: 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected)


PERFORMANCE



GRE
• Unencrypted: 624.2Mbps
• Encrypted: 301.5Mbps


WireGuard VPN
393.5Mbps


Concurrent Session
150


New Sessions /Second
5,1


NAT (Static IP)
937.2 Mbps / 936.1Mbps


NAT(DHCP)
945.8 Mbps / 940.6Mbps


NAT(PPPoE)
942.9 Mbps / 942.9Mbps


NAT (L2TP)
837.4 Mbps / 881.5Mbps


NAT (PPTP)
803.0 Mbps / 910.5 Mbps


IPsec VPN Throughput
• ESP-SHA1-AES256: 646.9Mbps
• ESP-SHA256-AES256: 642.8Mbps
• ESP-SHA384-AES256: 648.9Mbps
• ESP-SHA512-AES256: 658.4 Mbps


OpenVPN
129.3Mbps


L2TP VPN Throughput
• Unencrypted: 1034.0 Mbps
• Encrypted: 570.0 Mbps


PPTP VPN Throughput
• Unencrypted: 1165.0 Mbps
• Encrypted: 209.0 Mbps


SSL VPN Throughput
126.7Mbps


66 Byte Packet forwarding rate
1,453,489 pps / 1,453,488 pps


1,518 Byte Packet forwarding rate
81,274 pps / 91,275 pps


WIRELESS FEATURES



Advanced Functions
• Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU-MIMO
• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise


Guest Network
Support


BASIC FUNCTIONS



WAN Connection Type
• Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP


MAC Clone
Modify WAN Address


DHCP
• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP


IPv6
StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode


VLAN
802.1Q VLAN


IPTV
IGMP v2/v3 Proxy, Custom Mode, Bridge Mode


ADVANCED FUNCTIONS



ACL
IP/Port/Protocol/Domain Name Filtering


Advanced Routing
• Static Routing
• Policy Routing
• RIP†
• OSPF†


Bandwidth Control
IP-Based Bandwidth Control


Load Balance
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup(Timing, Failover)
• Online Detection


NAT
• One-to-One NAT
• Multi-Net NAT
• Port Forwarding
• Port Triggering†
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP


Session Limit
IP-Based Session Limit


VPN



SSL VPN
50 Tunnels


IPsec VPN
• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)


PPTP VPN
• PPTP VPN Server
• PPTP VPN Client (10)?
• 50 Tunnels
• PPTP with MPPE Encryption


L2TP VPN
• L2TP VPN Server
• L2TP VPN Client (10)?
• 50 Tunnels
• L2TP over IPSec


OpenVPN
• OpenVPN Server
• OpenVPN Client (5)?
• 55 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode


AUTHENTICATION



Web Authentication
• No Authentication
• Simple Password§
• Hotspot (Local User / Voucher§ / SMS§ / Radius§)
• External Radius Sever
• External Portal Sever§
• LDAP


MANAGEMENT



Omada App
Yes.


Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller


Cloud Access
Yes.


Service
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS
Customization)


Maintenance
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)†
• NTP Synchronize†
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support


Zero-Touch Provisioning
Yes. Require the use of Omada Cloud-Based Controller.


Management Features
• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration


OTHERS



Certification
CE, FCC, RoHS


Package Contents
• ER706W
• Power Adapter
• Quick Installation Guide


System Requirements
• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux


Environment
• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing

Specifikace:
