TP-Link EAP670 [AX5400 Ceiling Mount WiFi 6 Access Point] - OMADA

Popis produktu:

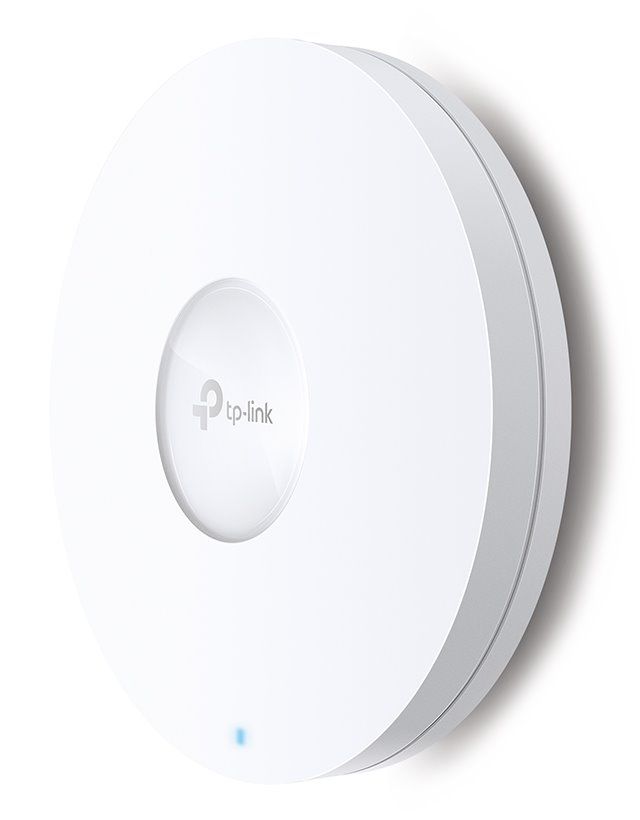

TP-Link EAP670 v2
Přístupový bod AX5400 Wi-Fi 6 pro montáž na strop

Bleskově rychlá WiFi 6 s rychlostí (574 Mb/s na 2,4 GHz + 4804 Mb/s na 5 GHz).
Integrováno do Omada SDN, podporuje centralizovanou správu cloudu, ZTP a další.
Kanál 160 MHz zdvojnásobuje data ve špičkách přenosu na jednom streamu.
Pokročilé funkce: Podporuje bezproblémový roaming, Omada Mesh a další.
Podporuje napájení 802.3at PoE+ i DC (adaptér je součástí balení) pro flexibilní instalaci.

Více informací o Omada Wi-Fi 6>?
Více informací o Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-wifi-ceiling-mount/eap670/v2/
Technické specifikace




HARDWARE FEATURES



Interface
1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)


Button
Reset


Power Supply
• 802.3at PoE
• 12 V / 2 A DC (Power Adapter included)


Power Consumption
• EU: 20.8 W
• US: 22.3 W


Dimensions ( W x D x H )
8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)


Antenna Type
Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 4× 5 dBi


Mounting
Ceiling /Wall Mounting (Kits included)


WIRELESS FEATURES



Wireless Client Capacity
250+**


Wireless Standards
IEEE 802.11ax/ac/n/g/b/a


Frequency
2.4 GHz and 5 GHz


Signal Rate
• 5 GHz: Up to 4804 Mbps
• 2.4 GHz: Up to 574 Mbps


Wireless Functions
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)‡
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client


Wireless Security
• Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise


Transmission Power
• CE:

• FCC:


MANAGEMENT



Omada App
Yes


Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller


Cloud Access
Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.


Email Alerts
Yes


LED ON/OFF Control
Yes


Management MAC Access Control
Yes


SNMP
v1, v2c, v3


System Logging Local/Remote Syslog
Local/Remote Syslog


SSH
Yes


Web-based Management
HTTP/HTTPS


L3 Management
Yes


Multi-site Management
Yes


Management VLAN
Yes


Zero-Touch Provisioning
Yes. Require the use of Omada Cloud-Based Controller.


OTHERS



Certification
CE, FCC, RoHS


Package Contents
• EAP670
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide


System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux


Environment
• Operating Temperature: 0–40 °C (32–104 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
