TP-Link EAP660 HD stropní Dual Band Wi-FI 6 AP/ 1x 10/100/2500 Mbps RJ45 - OMADA

Popis produktu:

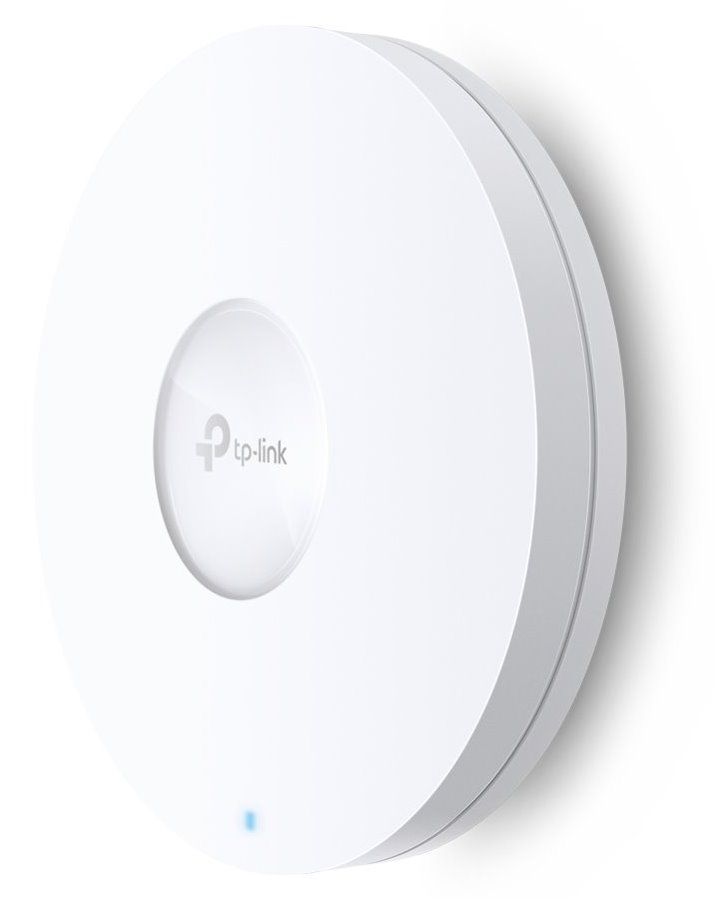

TP-Link EAP660 HD v2
Bezdrátový dvoupásmový multigigabitový přístupový bod pro montáž na strop AX3600

Ultra rychlá Wi-Fi 6 s rychlostí (1148 Mb/s na 2,4 GHz + 2402 Mb/s na 5 GHz).
Kapacita až 1 000+ klientů, nejlepší pro scénáře s vysokou hustotou připojení.
Zcela nový ultratenký design (22 × 22 × 7,9 cm).
Integrováno do Omada SDN, podporuje centralizovanou správu cloudu, ZTP a další.
Ethernetový port 2,5 Gb/s zvyšuje celkovou propustnost internetu.
Podporuje PoE 802.3at pro pohodlné nasazení a instalaci.

Další informace o Omada Wi-Fi 6>?
Další informace o Omada Cloud SDN>?

Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-wifi-ceiling-mount/eap660-hd/v2/
Technické specifikace




HARDWARE FEATURES



Interface
1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)


Button
Reset


Power Supply
• 802.3at PoE
• 12 V DC


Power Consumption
• EU: 25.5 W
• US: 22.3 W


Dimensions ( W x D x H )
8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)


Antenna Type
Internal Omni
• 2.4 GHz: 4× 4 dBi
• 5 GHz: 4× 5 dBi


Mounting
Ceiling /Wall Mounting (Kits included)


WIRELESS FEATURES



Wireless Client Capacity
1,000+***


Wireless Standards
IEEE 802.11ax/ac/n/g/b/a


Frequency
2.4 GHz and 5 GHz


Signal Rate
• 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 1148 Mbps


Wireless Functions
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming?
• Omada Mesh?
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client


Wireless Security
• Captive Portal Authentication?
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise


Transmission Power
• CE:

• FCC:


MANAGEMENT



Omada App
Yes


Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller


Cloud Access
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.


Email Alerts
Yes


LED ON/OFF Control
Yes


Management MAC Access Control
Yes


SNMP
v1, v2c, v3


System Logging Local/Remote Syslog
Local/Remote Syslog


SSH
Yes


Web-based Management
HTTP/HTTPS


L3 Management
Yes


Multi-site Management
Yes


Management VLAN
Yes


Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.


OTHERS



Certification
CE, FCC, RoHS


Package Contents
• EAP660 HD
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide


System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux


Environment
• Operating Temperature: 0–40 °C (32–104 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
