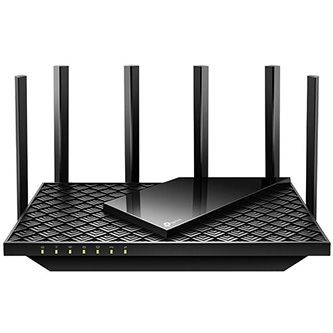

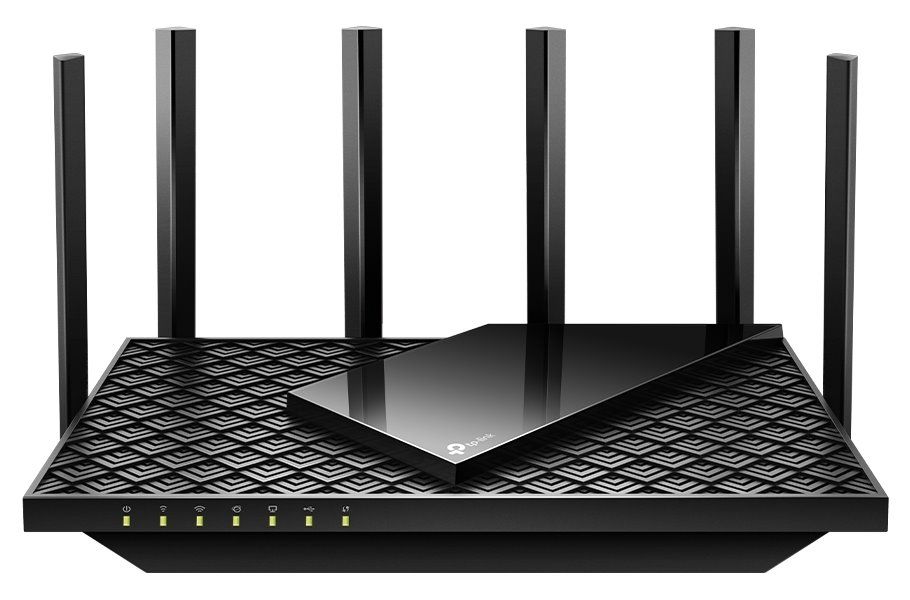

TP-Link Archer AX72 Pro [AX5400 Dual-Band Wi-Fi 6 Router]

Popis produktu:

TP-Link Archer AX72 Pro
Multigigabitový WiFi 6 router AX5400 s 2.5 Gigabit WAN/LAN Portem


Gigabit WiFi pro 8K streamování – 5400 Mb/s WiFi pro rychlejší procházení, streamování a stahování, to vše současně.
Plně vybavená Wi-Fi 6 – Je vybavena špičkovou strukturou 4T4R a HE160 v pásmu 5 GHz, která umožňuje ultrarychlé připojení 4,8 Gb/s.
Připojí 100+ zařízení – Podporuje MU-MIMO a OFDMA pro snížení přetížení a zčtyřnásobení průměrné propustnosti.
Široké pokrytí – 6× antény a Beamforming zajišťují široké pokrytí.
HomeShield – prémiové bezpečnostní služby TP-Link udržují vaši domácí síť v bezpečí díky špičkovým funkcím pro ochranu sítě a internetu věcí.
Více větracích otvorů, méně tepla– Vylepšená oblast větracích otvorů umožňuje ještlepší výkon.

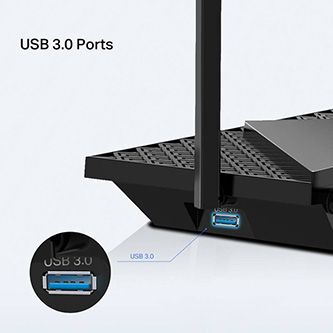

USB Sharing – 1× port USB 3.0 umožňuje snadné sdílení médií a budování privátního cloudu.
Snadné nastavení – Nastavte router během několika minut pomocí aplikace Tether.

Stránky produktu: https://www.tp-link.com/cz/home-networking/wifi-router/archer-ax72-pro/
Technické specifikace



WIRELESS



Standards
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz


WiFi Speeds
AX5400
5 GHz: 4804 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)


WiFi Range
3 Bedroom Houses

6× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage

4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission


WiFi Capacity
High

Dual-Band
Allocate devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

6 Streams
Connect your devices to more bandwidth


Working Modes
Router Mode
Access Point Mode


HARDWARE



Processor
1 GHz Dual-Core CPU


Ethernet Ports

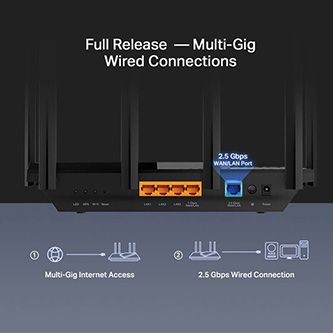

1× 2.5 Gigabit WAN/LAN Port
4× Gigabit LAN Ports


USB Support
1× USB 3.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server


Buttons
Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button


Power
12 V = 2.5 A


SECURITY



WiFi Encryption
WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)


Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeShield Security

Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner


Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network


VPN Server
OpenVPN
PPTP


SOFTWARE



Protocols
IPv4
IPv6


Service Kits
HomeShield
Learn More>


OneMesh™
OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>


Parental Controls
HomeShield Parental Controls

Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports


WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP


Quality of Service
QoS by Device


Cloud Service
Auto Firmware Upgrade
TP-Link ID
DDNS


NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP
Virtual Server


IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN


DHCP
Address Reservation
DHCP Client List
Server


DDNS
TP-Link
NO-IP
DynDNS


Management
Tether App
Webpage


OTHER



System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)


Certifications
FCC, CE, RoHS


Environment
Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing


TEST DATA



WiFi Transmission Power
CE:



WiFi Reception Sensitivity
2.4GHz:
11ac VHT20 MCS0:-94.5dBm
11ac VHT20 MCS8:-72.5dBm
11ac VHT40 MCS0:-92.5dBm
11ac VHT40 MCS9:-69.5dBm
11ax HE20 MCS0:-95dBm
11ax HE20 MCS11:-64.5dBm
11ax HE40 MCS0:-92.5dBm
11ax HE40 MCS11:-62dBm
5GHz:
11ac VHT20 MCS0:-97dBm
11ac VHT20 MCS8:-74dBm
11ac VHT40 MCS0:-95dBm
11ac VHT40 MCS9:-70dBm
11ac VHT80 MCS0:-91.5dBm
11ac VHT80 MCS9:-66dBm
11ac VHT160 MCS0:-86dBm
11ac VHT160 MCS9:-61dBm
11ax HE20 MCS0:-95dBm
11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-91.5dBm
11ax HE40 MCS11:-62dBm
11ax HE80 MCS0:-88dBm
11ax HE80 MCS11:-58dBm
11ax HE160 MCS0:-85.5dBm
11ax HE160 MCS11:-55dBm


PHYSICAL



Dimensions (W×D×H)
10.7 × 5.8 × 1.9 in
(272.5 × 147.2 × 49.2 mm)


Package Contents
Wi-Fi Router Archer AX72
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
