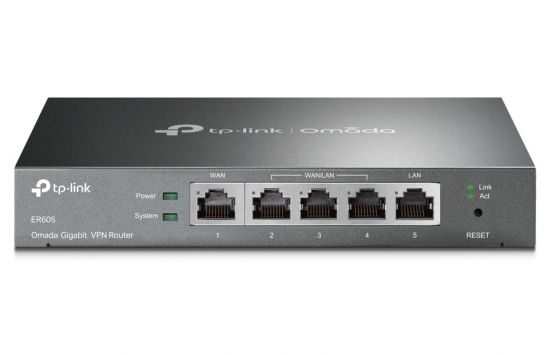

TP-Link ER605 Gigabitový VPN router Omada
Integrováno do platformy Omada SDN: Funkce ZTP (Zero-Touch Provisioning),** centralizovaná cloudová správa a inteligentní monitorování. Centralizovaná správa: Cloudový přístup a aplikace Omada pro maximální pohodlí a snadnou správu. Pět gigabitových portů: Vysokorychlostní kabelová konektivita. Až 4 porty WAN: 1 gigabitový port WAN a 3 gigabitové porty WAN/LAN s funkcí vyrovnávání zatížení zvyšují míru využití vícelinkového širokopásmového připojení. VPN s vysokým zabezpečením: Podporuje připojení až 20× LAN-LAN IPsec, 16× OpenVPN,* 16× L2TP a 16× PPTP VPN. Mnoho funkcí zabezpečení: Pokročilé zásady firewallu, ochrana proti útokům DoS, filtrování adres IP/MAC/URL a další bezpečnostní funkce na ochranu vaší sítě a dat.
Stránky produktu: https://www.tp-link.com/cz/business-networking/vpn-router/er605/
Technické specifikace
HARDWARE FEATURES Standards and Protocols • IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP Interface • 1 Fixed Gigabit WAN Port
• 2 Fixed Gigabit LAN Ports
• 2 Changeable Gigabit WAN/LAN Ports
• 1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup) Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100ohm STP (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100ohm STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) Button Reset Button Power Supply External 12V/1A DC Adapter Flash 128 MB NAND DRAM 256 MB DDR LED PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB Dimensions (WxDxH) 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm) Max Power Consumption 7.94 W PERFORMANCE Concurrent Session 150 New Sessions /Second 2,6 NAT (Static IP) • Upload: 945.77 Mbps
• Download: 945.56 Mbps
• Bi-Directional: 1808.29 Mbps NAT(DHCP) • Upload: 945.93 Mbps
• Download: 945.43 Mbps
• Bi-Directional: 1808.11 Mbps NAT(PPPoE) • Upload: 940.44Mbps
• Download: 940.52 Mbps
• Bi-Directional: 1804.27 Mbps NAT (L2TP) • Upload: 845.64 Mbps
• Download: 802.65 Mbps
• Bi-Directional: 931.96 Mbps NAT (PPTP) • Upload: 771.66 Mbps
• Download: 874.81 Mbps
• Bi-Directional: 999.54 Mbps 64 Byte Packet Forwarding Rate • Upload/Download: 1,402,238 pps
• Bi-Directional: 1,681,548 pps IPsec VPN Throughput • ESP-MD5-AES256: 171.26 Mbps
• ESP-SHA1-AES256: 224.86 Mbps
• ESP-SHA2-AES256: 248.04 Mbps OpenVPN • 21.70 Mbps L2TP VPN Throughput • Unencrypted: 864.65 Mbps
• Encrypted: 47.11 Mbps PPTP VPN Throughput • Unencrypted: 703.20 Mbps
• Encrypted: 76.65 Mbps BASIC FUNCTIONS WAN Connection Type • Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
• Mobile Broadband: 4G/3G modem for backup via USB port‡ MAC Clone Modify WAN/LAN MAC Address† DHCP • DHCP Server/Client
• DHCP Address Reservation
• Multi-net DHCP*
• Multi-IP Interfaces* IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough VLAN 802.1Q VLAN IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode ADVANCED FUNCTIONS ACL IP/Port/Protocol/Domain Name Filtering Advanced Routing • Static Routing
• Policy Routing Bandwidth Control IP-based Bandwidth Control Load Balance • Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing§, Failover)
• Online Detection NAT • One-to-One NAT§
• Multi-Net NAT
• Virtual Server
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP Security • SPI Firewall
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management Session Limit IP-based Session Limit VPN IPsec VPN • 20 IPsec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS) PPTP VPN • PPTP VPN Server
• 10 PPTP VPN Clients**
• 16 Tunnels
• PPTP with MPPE Encryption L2TP VPN • L2TP VPN Server
• 10 L2TP VPN Clients**
• 16 Tunnels
• L2TP over IPSec OpenVPN • OpenVPN Server*
• 10 OpenVPN Clients*
• 16 OpenVPN Tunnels* SECURITY Filtering • WEB Group Filtering§
• URL Filtering
• Web Security§ ARP Inspection • Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding§ Attack Defense • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN Access Control Source/Destination IP Based Access Control AUTHENTICATION Web Authentication • No Authentication
• Simple Password*
• Hotspot(Local User / Voucher* / SMS* / Radius*)
• External Radius Sever
• External Portal Sever*
• Facebook* MANAGEMENT Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) Maintenance • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)
• NTP Synchronize
• Syslog Support Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller. Management Features • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration OTHERS Certification CE, FCC, RoHS Package Contents • Gigabti VPN Router ER605
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux Environment • Operating Temperature: 0°C–40°C (32°F–104°F);
• Storage Temperature: -40°C–70°C (-40°F–158°F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
|
|
