ERGOTRON SV Scanner Shelf, přídavná polička

Popis produktu:

ERGOTRON SV Scanner Shelf, přídavná polička

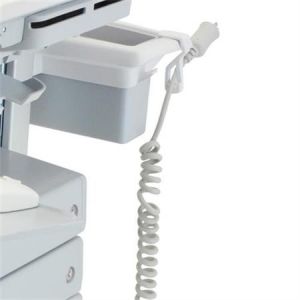

This handy shelf is designed to hold a wireless scanner base at a convenient working height on StyleView carts. Attach it to the worksurface or to the back of the cart. Also can be easily integrated into a Wall Track system.*

Part Number: 97-780-194
Description: SV Scanner Shelf (silver)

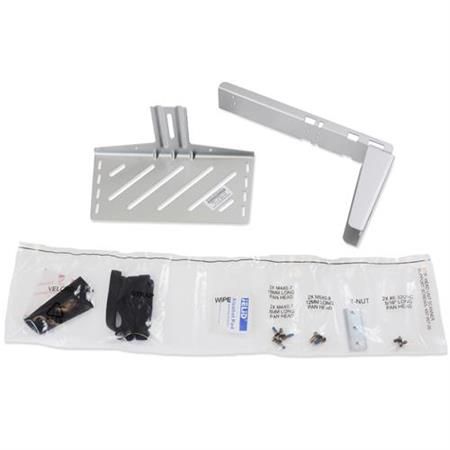

Includes tray, bracket, Velcro, strap, mounting hardware
Shelf dimensions = 8"W x 4"D (20 x 10 cm)
Scanner base can be attached to shelf with included Velcro or strap, or via tripod-mount interface if present
Attachment of this shelf impacts the overall weight capacity of the combined LCD/CPU on StyleView carts
Weight limitations of cart’s head-unit assembly as follows:

SV41 and SV42 SLA LCD carts = 23 lbs / 10.4 kg
SV41 and SV42 laptop carts (SLA and LiFe) = 14 lbs / 6.4 kg
SV42 LiFe LCD carts = 19 lbs / 8.6 kg
Attaches to the cart’s worksurface via included head-unit bracket, or to the back of the cart using included t-slot bracket
* If attaching to Ergotron Wall Track, separately ordered Track Mount Bracket (97-091) is required
Shipping Dimensions: 12" x 7" x 6" (30.5 x 18 x 15.5 cm)
Shipping Weight: 3 lbs (1.4 kg)
