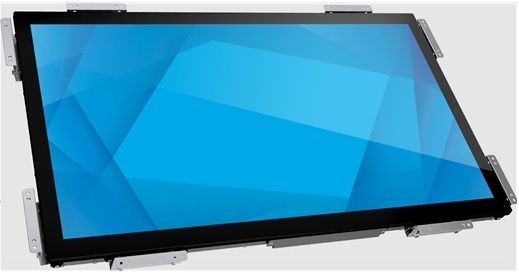

Elo 3263L Clear Anti-friction Glass, 81 cm (32), Projected Capacitive, Full HD

Popis produktu:

Enclosure Color

Black

Touch Technology & Capacity

PCAP (TouchPro® Projected Capacitive) - 40 Touch with Palm Rejection and Touch Thru capability

Touch Thru

Supports up to 6mm glass/3mm plastic with up to 2 touches. Supports gloves up to 1.4mm

Touch Interface

USB

Diagonal Size

31.5'' diagonal, Active matrix TFT LCD (LED)

On Screen Display

Accessible through switches on the OSD Control Remote accessory.

Controls (side): Menu, Up, Down, Select

Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults, Video Source, Touch, RTC, MDC, Touch Through

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

Lockouts: OSD, Power

RTC Settings: The clock/time and the monitor ON/OFF schedule can be changed within this menu. Daylight Saving time is adjusted for automatically and will change the current time by one hour to accommodate daylight savings time.

See user manual for full details.

Aspect Ratio

16:9

Active Area

27.5" x 15.47" / 698.4 mm x 392.9 mm

Resolution

1920 x 1080 @ 60hz

Other Supported Resolutions

640x480 @ 60Hz
800x600 @ 56/60Hz
1024x768 @ 60Hz
1280x720 @ 60Hz
1280x800 @ 60Hz RB
1280x960 @ 60Hz
1280x1024 @ 60Hz
1366x768 @ 60Hz
1366x768 @ 60Hz RB
1440x900 @ 60Hz
1440x900 @ 60Hz RB
1680x1050 @ 60Hz
1680x1050 @ 60Hz RB
1920x1080 @ 60Hz

Viewing Angle

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

Number of Colors

8-bit (16.7 million)

Brightness (typical)

LCD panel: 500 nits
TouchPro PCAP: 425 nits

Response Time-total (typical)

8 msec

Contrast Ratio

3000:1

I/O Ports

HDMI 1.4 x2
USB 2.0 Type B (for Touch)
RJ45 (for optional OSD remote)
VGA

Video

2x HDCP-capable HDMI on Type A connector
Female DE-15 VGA connector
Input Video Horizontal Sync frequency range: 31.5 – 80 KHz
Input Video Vertical Sync (frame rate) frequency range: 47 – 63 KHz

Power

Input connector (power): IEC 60320-C14
Input signal specifications (power): 100-240VAC 50/60Hz

Maximum Operating Time

24 hours/day

Power Consumption (Typical)

ON (monitor + AC/DC adapter): 44.3 W
SLEEP (monitor + AC/DC adapter): 0.61 W
OFF (monitor + AC/DC adapter): 0.20 W

Dimensions

29.42" x 17.82" x 2.16" / 747.3 mm x 452.7 mm x 55 mm

Shipping Box Dimensions

39.4" x 12.05" x 26.79" / 1000 mm x 306 mm x 680 mm

Weight (Unpackaged)

24.17 lbs / 10.99 Kg

Weight (Packaged)

37.47 lbs / 17.03 Kg

Operating Temperature

Portrait/Landscape Mode: 0°C to 40°C / 32°F to 104°F
Tabletop Mode: 0° C to 35° C / 32°F to 95°F

Storage Temperature

Portrait/Landscape Mode: -20°C to 60°C / -4°F to 140°F
Tabletop Mode: -20° C to 60° C / -4° F to 140° F

Humidity

Operating: 20% to 80%
Storage: 10% to 90% (38.7°C max wet bulb temperature)

Sealability

Touchscreen sealed to bezel
Touchscreen sealed to LCD

MTBF

50,000 hours demonstrated

Warranty

3-year

Extended Service Options

4 year warranty coverage + AUR - Elo P/N: E740135
5 year warranty coverage + AUR - Elo P/N: E740330

Regulatory approvals and declarations

Argentina S-Mark
Australia RCM
Canada CUL, IC
China CCC
Europe CE
Japan VCCI
Korea KCC e-Standby
Mexico CoC
Russia EAC
Taiwan BSMI
United States UL, FCC
International CB
Mexico NOM
RoHS, China RoHS, WEEE
Energy Star 8.0
UL 60950 ball-drop compliant
IK07 impact compliant
CB (International safety) (IEC/EN60950-1+IEC/EN62368-1)

Mounting Options

VESA 400mm x 200mm
See dimensional drawings for details

Other Features

Ambient Light Sensor - changes panel color to match ambient light, Auto Wake

What's in the Box

Quick Install Guide
HDMI 1.4 cable (Type A plug to Type A plug)
VGA cable (DB-15 male to DB-15 male)
USB cable (Type A plug to Type B plug)
RJ45 Wired OSD remote
Power cable, IEC 60320-C13 to NA plug
Power cable, IEC 60320-C13 to EU/KR plug
Power cable, IEC 60320-C13 to UK plug
Energy label according to EU Regulation 2019/2013
8 sets Flushmount Brackets 48 pcs Screws

Options / Peripherals / Upgrades

Elo Remote OSD (RJ45) - Elo P/N: E483757
Elo 32-inch Wide Flush-mount Bracket - Elo P/N: E312503
Optional PCAP Stylus Pen - Elo P/N: E066148
Elo Backpack® 4 (Value Model)- Elo P/N: E393754
Elo Backpack® 4 (Standard Model) - Elo P/N: E393359
