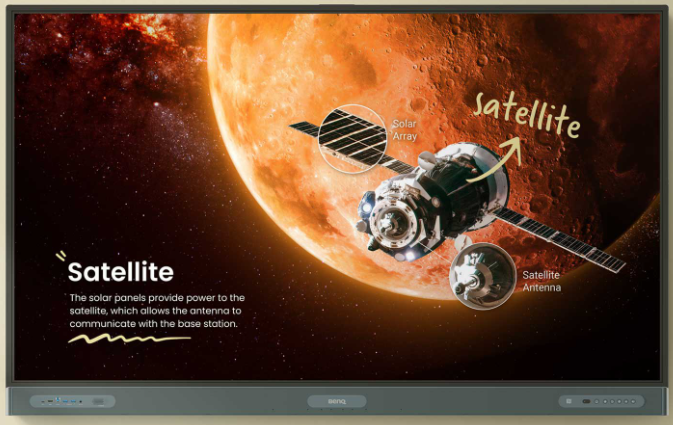

BenQ LCD RP7504 75" IPS Touch/3840 × 2160/1200:1/8ms/400 nits/4xHDMI/VGA/DP/repro

Popis produktu:

Specification

Panel

Screen size: 75''
Panel type: IPS
Orientation: Landscape
Operation hours: 18 hours / 7 days
Active area: 1649.7 × 927.9 mm
Aspect ratio: 16:9
Contrast ratio (typical): 16:9
Contrast ratio (typical): 1200:1
Dynamic contrast ratio: 50,000:1
Resolution: UHD 3840 × 2160 pixels
Response time: 8 ms
Pixel pitch: 0.43 × 0.43 mm
Frame rate: 60 Hz
Viewing angle: 178°
Color depth: 10-bit
Light life (typical): 50,000 hrs
Brightness with glass(typical): 400 nits
Brightness without glass (typical): 450 nits


Glass

Glass Thickness: 3.2 mm
Germ-resistant technology: Nano-ionic silver
Anti-glare coating: Yes
Hardness: 9H tempered


Touch screen

Touch technology: Infrared touch
Touch points: up to 50

Platform System

CPU: A73 × 4 + A53 × 4
GPU: Mali-G57 MC5
OS: Android 13.0
Memory | Storage: 8GB I 64GB

Connectivity

VGA (in | out): 1 | 0
DVI (in | out): N/A
HDMI (in | out): 4 × HDMI 2.0 | 1 × HDMI 2.0
DisplayPort (in | out): 1 × 1.2a | No
Audio (L/R, RCA) (in | out): N/A
IR Loop Through: N/A
Micro SD reader: N/A
Slot-in PC (OPS): 1
SPDIF (in | out): 0 | 1 (optical)
Power (AC) (in | out | switch): 1 | No | 1
Ethernet LAN: 10 / 100 / 1000 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 2
3.5 mm Line in (1): Mic × 1
3.5 mm Line in (2): PC Audio × 1
3.5 mm Line out: Earphone × 1
USB-A: 1 × 2.0 + 7 × 3.0
USB-B (for touch): 3 × 3.0
USB-C: 2 × 3.0 + 1 × 2.0 (PD 65 W) + 1 × 3.0 (PD 100 W)

Built-in peripherals

Microphone: 8
Speaker: 2 × 20 W
Subwoofer: 1 × 16 W
Particle sensor: PM2.5
Temperature sensor: 1
Humidity sensor: 1
Air sensor: TVOC
Air Ionizer: 1
Wi-Fi: Built-in
Bluetooth: Bluetooth 5.2
Motion sensor: 1
NFC: 2

Power

Power: AC 100-240V 50/60Hz
Switch: 1
Voltage: AC 100-240V 50/60Hz
Wake up: HDMI/VGA/DP


Physical

Dimensions (W x H x D): 1709.4 × 1060.8 × 117.7 mm (67.3 × 41.8 × 4.6 inch)
Weight (product I shipping): 52.2 kg | 64.5 kg (115.1 lbs | 142.2 lbs)
Mount (screws): VESA 800 × 400 mm ( 4 × M8 × 25L)
Housing Material: Metal
Handles: 2
Pen Tray: 1
Shipping dimensions (W x H x D): 1863 × 1155 × 205 mm (73.3 × 45.5 × 8.1 inch)

Software

Flicker free: Yes
Low Blue Light: Yes
Device management: DMS
Quick access tool: Floating Tool
Content management: N/A
Color Calibration SW: N/A
Wireless screen sharing: InstaShare 2
Broadcast system: X-Sign Broadcast
Account management: AMS
User interface (4K): Yes
Whiteboarding: EZWrite 6.0


Accessories

Adaptor: N/A
Stylus: 2
Wall mount: 1
RS232 Cable: N/A
Remote control: 1
Carton: BenQ printing
Cables: 1 × VGA (3 m | 9.8 ft), 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)

OSD: (28L) EN/EF/GM/DT/PL/RS/CZ/DN/SW/IT/RM/FN/NG/GK/HG/SP/EP/TC/CN/AB/JP/TH/PS/VT/KR/TR/ID/HE


Feature

Image setting: Yes
HDMI Daisy Chain: Yes(HDMI out)
RS232 control daisy chain: N/A
ID Setting: N/A
Sharpness enhancement: Yes
Proof of Image Retention: Yes
DDC / CI: N/A
HDMI-HDCP: 1.4 / 2.2
Picture in Picture (PIP): N/A
DP-HDCP: Yes (1.2)
10 Bit Color Processing: Yes
Ambient light sensor: Yes
FW update: USB, OTA
Freeze/ Blank: Yes
Front I/O: Yes
