BenQ InstaShow (WDC20), USB/HDMI/smartphone

Popis produktu:

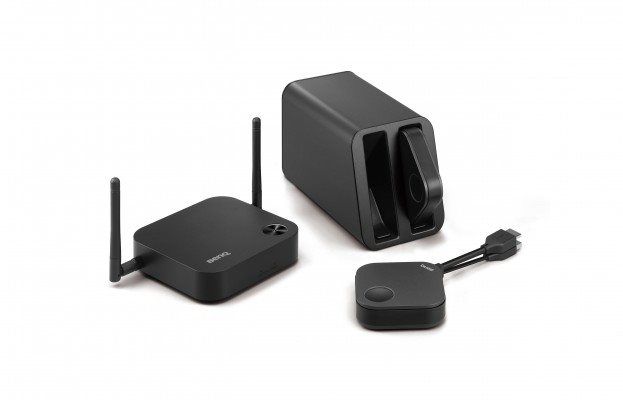

InstaShow™ S (WDC20) Wireless Presentation System

Feature
Model name WDC20
Product name InstaShow™ S
Color Black
Video outputs HDMI 1.4, comply with HDCP
Frame Rate Up to 60 fps depending on environment (FHD)
Output resolution 720x480, 720x576, 1280x720, 1920x1080 (1080p), up to 3840x2160(30Hz)
Input resolution Video:480p, 576p, 720p, 1080p
PC timing: 640x480, 800x600, 1024x768, 1280x720, 1920x1080
Simultaneous connections 32 pcs
Audio Stereo, Radio quality 16bits 48KHz
Wireless IEEE 802.11ac, 5GHz, 2T2R
IEEE 802.11n, 2.4GHz, 2T2R
Data rate wireless Up to 867 + 300Mbps
Authentication protocol WPA2 (WPA2-PSK (Pre-Shared key) / WPA2-Enterprise)
Security (encryption )
WPA2 Personal (AES 128 bit)
Support platform Windows, MAC, Chrome. Any OS supports HDMI standard 1.4
Reach Max. 15m between InstaShow S Button and InstaShow S Host
Temperature range Operating: 0°C to +40°C (+32°F to +104°F)
Storage: -10°C to +60°C (+14°F to +140°F)
Humidity Storage: 5% to 90% relative humidity, non-condensing
Operation: 10% to 80% relative humidity, non-condensing

InstaShow Button
Cable USB Type A, HDMI Cable
Reset Button x1
Mode Key NA
LED 3/6 LED(R.G.B)
Power Supply DC 5V±10%, 0.5A
Power Consumption 2.5W
Dimension (WxHxD) 67*67*24.2mm (without wire)
81*291*24.2mm (with wire)
Weight 81g

InstaShow Host
Power Button NA
Pairing Key x1
WAN x1
Video Output x1 HDMI 1.4 (video and audio)
LED 3 LED(R.G.B)
DC Power Jack x1 (micro USB)
Power Supply DC 12V±10%, 2A
Power Consumption 24W
Dimension (WxHxD)
(not include rubber feet) 154*34*140mm (without Antenna)
200*150*140mm (with Antenna)
Weight 330g

Cradle
Dimensioin 100.4*92.6*152mm
Weight 550g

Package
InstaShow Button x2
InstaShow Host x1
Cradle x1
HDMI Cable 80cm
USB Extended Cable x1 (80cm)
Antenna x4 (Black)
Adapter x1
Velcro Strap x1
Quick Start Guide x1
Safety Statement x1
Double-side Sponge Tap No
Rubber Feet Yes
Screws Yes

Note
* Please find detail LED behavior in the user manual.
**Wireless connection speed is depended on wireless environment.
