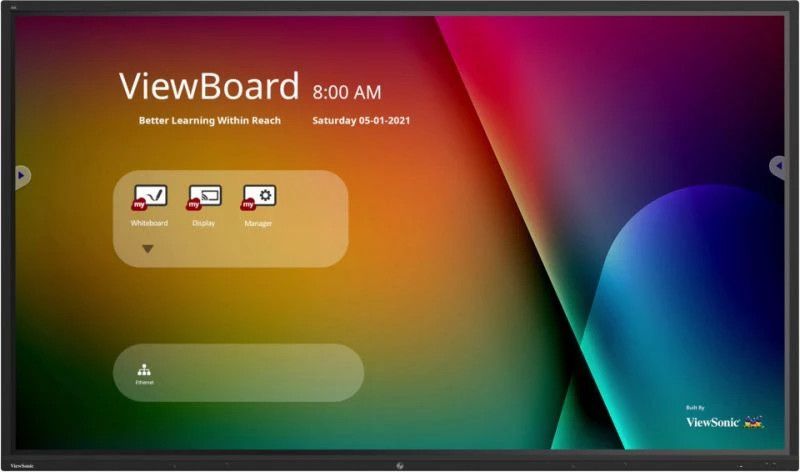

98" LED ViewSonic IFP9850-4

Popis produktu:

ViewBoard IFP9850-4
ViewBoard® 98" 4K interaktivní displej
Přirozené psaní perem na papír s technologií Ultra Fine Touch
Bezproblémové připojení typu plug-and-prezent přes USB-C
Nativní software pro tvorbu tabulek pro bezproblémové poznámky a spolupráci
Bezdrátové sdílení obsahu a 4cestná rozdělená obrazovka pro více přispěvatelů
myViewBoard Manager pro zjednodušenou a centralizovanou správu zobrazení

SPECIFICATIONS

Display
Panel Size: 98"
Panel Type: TFT LCD Module with DLED Backlight
Display Area (mm): 2171.85(H) x 1232.35(V) (97.52”diagonal)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160(Pixels)
Colors: 1.07B colors (10bit)
Brightness: 450 nits
Backlight Life: 50,000 Hours (Min.)
Contrast Ratio: DCR: 3000:1
Response Time: 8ms(TYP.)
Viewing Angles: H = 178, V = 178typ.
Backlight Life: 30,000 Hours (Min)
Surface Treatment: Anti-glare
Disclaimer: 50,000 hours backlight life at 8 hours of use per day
Platform
Processor: ARM Cortex A73*4
RAM: 4GB DDR4
Storage: 32GB
Touch
Type/ Tech: Ultra fine touch technology
Touch Resolution: 32768 ×32768
Touch Point: 20 points touch, 10 points writing
INPUT
HDMI: HDMI 2.0 x3 (3840x2160 @60Hz)
RGB / VGA: x 1
Audio: x 1
RS232: x 1
OPS: X1 PC Slot
WiFi: x 1 WiFi Slot
OUTPUT
HDMI: HDMI out 2.0 x1 (3840x2160 @60Hz)
Audio: 3.5mm * 1
SPDIF: x1
LAN
RJ45: x2
USB
Type A: USB2.0 x 1USB3.0 x 4
Type B: x2, for touch
Type C: x1
SPEAKERS
16Wx2
Top Camera Plate
YES
COMPATIBILITY
RGB PC/HDMI PC: 1920x1080
HDMI: 4K 60Hz/30Hz/1080p
Embedded OS
Android 9
Bundle Software
Basic Annotation Software: myViewBoard for android
Pro Annotation Software: myViewBoard for windows (Embedded in Windows Slot-in PC)
Wireless Presentation: Viewboard Cast
Special Features
All-in-one USB port: Front “SmartPort USB” to all channels.
Simple LAN sharing between IFP and slot-in device: Yes
Light Sensor: Yes
Power
Voltage: 100-240VAC +/- 10% Wide Range
Consumption: On mode: 192.5W, Off mode< 0.5W
ERGONOMICS
Wall Mount (VESA® ): 800*600
OPERATING CONDITIONS
Temperature (o C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing
DIMENSIONS (W x H x D)
Physical (inch / mm): 88.4 x 52.1 x 3.6 in /2245 x 1323 x 91 mm
Packaging (inch / mm): 95.9 x 58.8 x 13.6 in / 2435 x 1483 x 346 mm
WEIGHT
Net (lb / kg): 228.4lb / 103.6kg
Gross (lb / kg): 293.7lb / 133.2kg
REGULATIONS
FCC, cTUVus, EPEAT, ES8, LBL, CE, CB, RCM
PACKAGE CONTENTS
1. Power cord
2. Remote control with AAA battery
3. USB cable for touch
4. Touch pen x 2
5. Quick Start Guide
6. RS232 adapter
7. Clamp x 5
8. Camera plate
9. Screw x 8
10. HDMI cable
11. USB Typc-C cable
Compatible Slot-in PC
VPC12-WPO series/VPC25-O series/VPC27-O series
