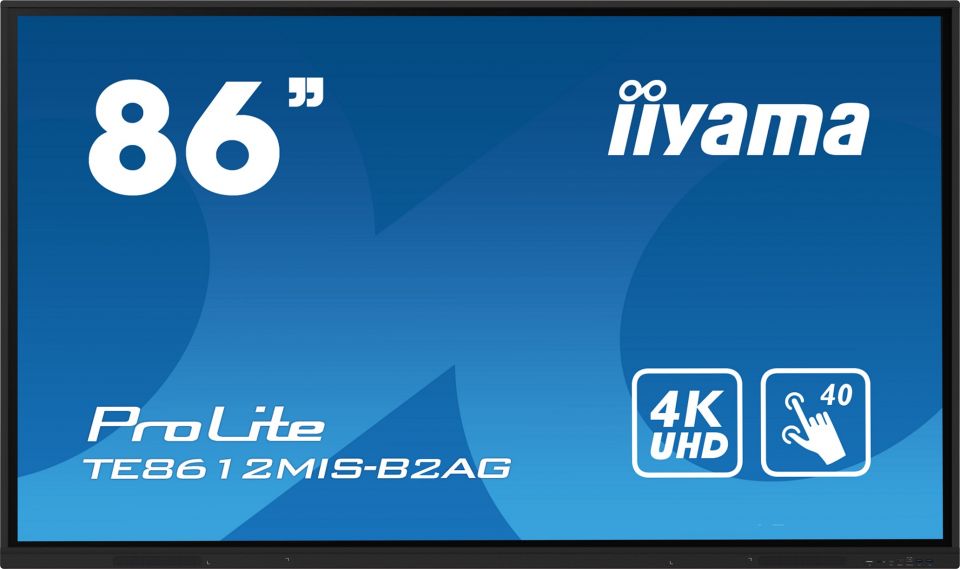

86" iiyama TE8612MIS-B2AG: IPS,4K,USB-C,40P

Popis produktu:

PROLITE TE8612MIS-B2AG - 86" Interactive 4K UHD Touchscreen elevating interactive collaboration

*PureTouch-IR
*iiWare
*iiyama Share
*iiyama DMS
*Security
*24/7

Typ obrazovky: VA/ AG coated glass, zero air-gap
Úhlopříčka [palce]: 85.6", 217.4 cm
Rozlišení: 3840 x 2160 (8.3 megapixel 4K UHD)
Rozteč bodu [mm]: 0.4935 mm
Obnovovací frekvence [Hz]: 60 Hz
Poměr stran: 16:9
Povrch displeje: Haze 25%
Jas [cd/m2]: 400

Kontrast:
Static contrast: 4000:1
Dynamic contrast: 8000:1

Odezva [ms]: 8 ms
Pozorovací úhly (Horizontál/Vertikál): 178°/178°
Počet barev: 1.07B 8bit+FRC
Reproduktory: 2 x 16W (Front)

Konektory:

Analog signal input:
*VGA x1 (max. 1920x1080 @60Hz)

Digital signal input:
*HDMI x3 (v.2.0, max. 3840x2160 @60Hz, YUV444)
*USB-C x1 (v.3.2 (Gen 1, 5Gbit), 3840x2160 @60Hz - RGB444 - (65W charging, Touch)

Audio input:
*Mini jack x1

Monitor control input:
*RS-232c x1 (DSUB 9pin)
*RJ45 (LAN) x1 (LAN Control)
*IR x1

Digital signal output:
*HDMI x1 (3840x2160 @60Hz)

Audio output:
*S/PDIF (Optical) x1
*Mini jack x1

HDCP:
*HDMI 1: 2.1, USB-C: 2.2

USB ports:
*x5 (media playback / peripherals / storage – front side: 2x v.3.2 (Gen 1, 5Gbit), 1x USB-C v.3.2 (Gen 1, 5Gbit, 65W PD), right side: 2x v.3.2 (Gen 1, 5Gbit))

RJ45 (LAN):
*x2 (Auto switch for PC & Android, 1000MB)

WiFi
*(WiFi Module OWM002 - Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IIEEE 802.11 a/b/g/n/ac, Bluetooth Support: 2.1/3.0/4.2/5.0)


TOUCH:
*Touch technology: PureTouch-IR
*Touch points: 40 (5pt writing, HID, only with supported OS)
*Touch accuracy: +- 1.5mm
*Touch method: stylus, finger, glove
*Touch interface: USB
*Supported operating systems: All iiyama monitors are Plug & Play and compatible with Windows and Linux.

Napájení: internal, AC 100 - 240V, 50/60Hz
Spotřeba [W]: 222 W
Stand By režim [W]: 0.5 W stand by, 0.3 W off mode

Montáž na zeď: 800 x 600 mm

Naklápění monitoru: landscape

Barva: Black, matte
Rozměry (ŠxVxH mm): 1957 x 1160 x 100 mm
Hmotnost [kg]: 58.6 kg

Obsah balení:

*Cables: power, USB, HDMI
*Touch pen: x4 (Dual function tips)
*Guides: quick start guide, safety guide
*Other: WiFi Module (OWM002), Mounting bracket for NUC, Mounting bracket for webcam
*Remote control: yes (batteries included)

Záruka: 60 měs.

https://iiyama.com/gl_en/products/prolite-te8612mis-b2ag/
